Main Fuse Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the main fuse block cover.
  3. Remove in the order indicated in the figure below.

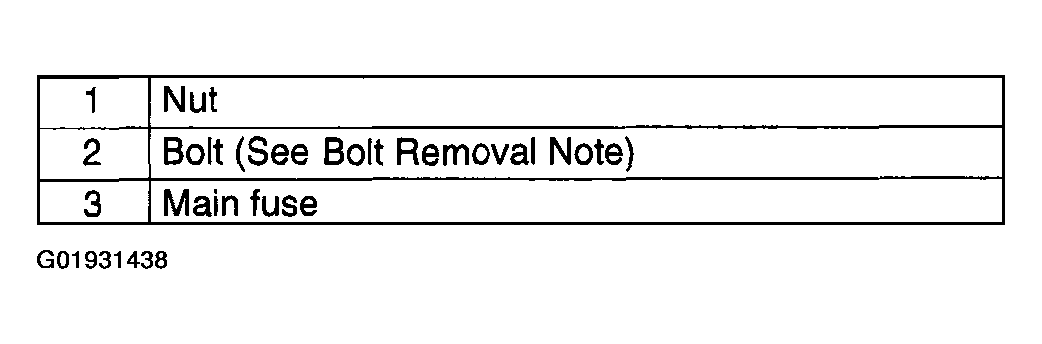

    Fig 1: Main Fuse Removal Order Table
    G01931438Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

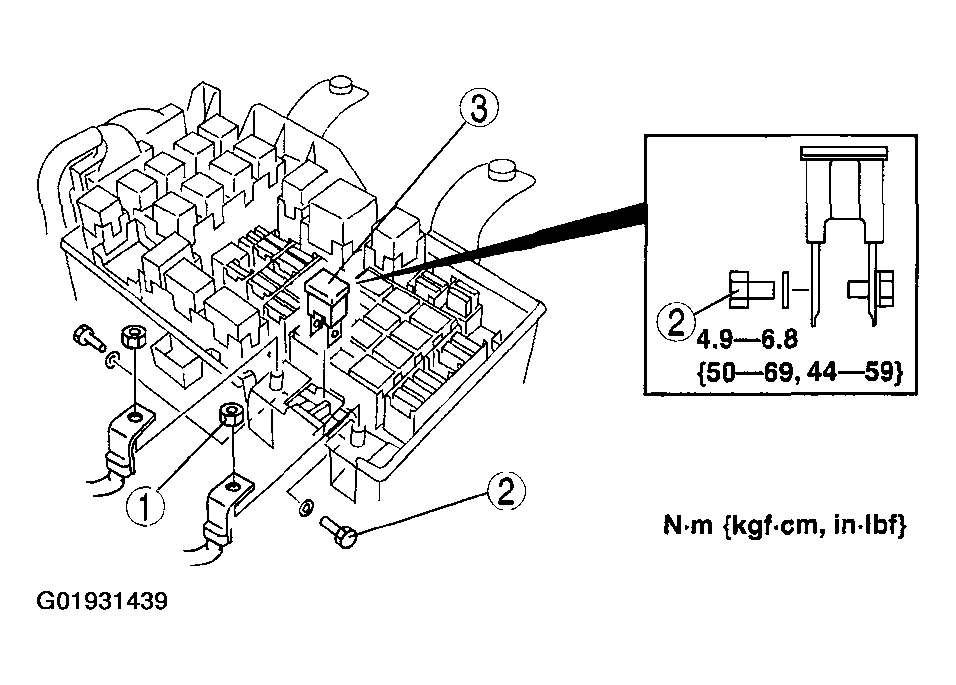

    Fig 2: Removing Main Fuse
    G01931439Courtesy of MAZDA MOTORS CORP.
