Power Window Motor Inspection

  1. Apply battery positive voltage to the power window motor terminals and inspect the power window motor operation.
    • If not as specified, replace the power window motor.

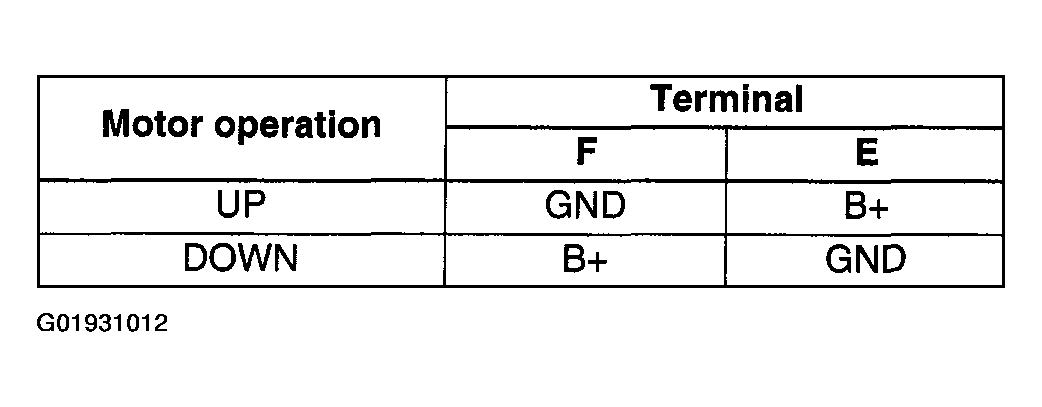

    Fig 1: Power Motor Terminals And Operation Chart
    G01931012Courtesy of MAZDA MOTORS CORP.

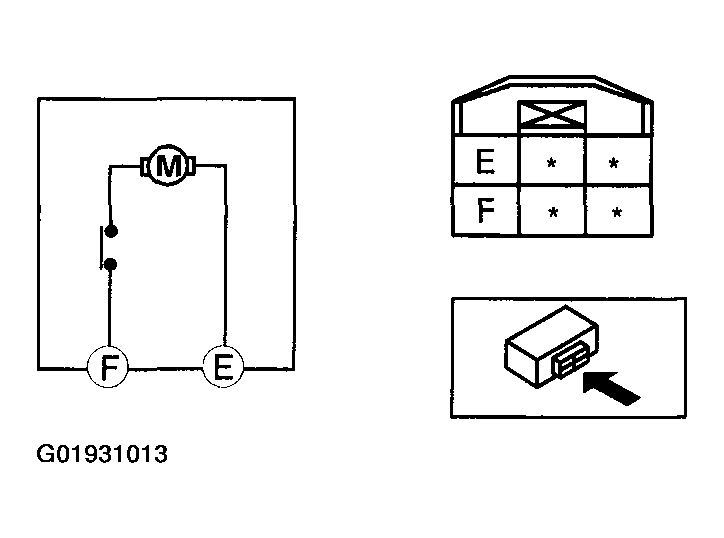

    Fig 2: Inspecting Power Window Motor Operation
    G01931013Courtesy of MAZDA MOTORS CORP.
