Abs/TCS HU/Cm Configuration

Connect the WDS or equivalent to the DLC-2.

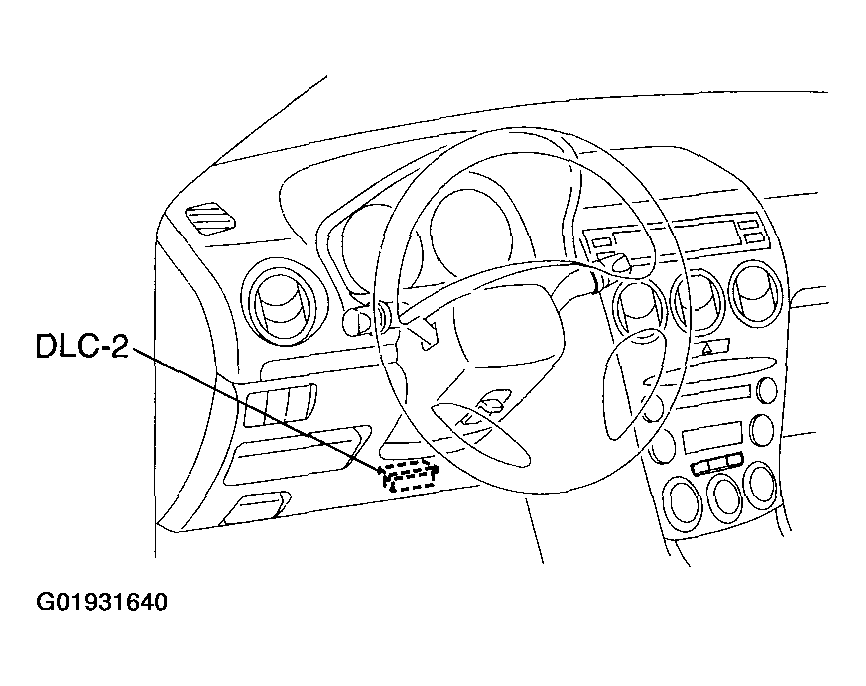

Fig 1: Identifying DLC-2
Courtesy of MAZDA MOTORS CORP.
Input vehicle information following the directions on the WDS or equivalent screen.
Select "MODULE PROGRAMMING".
Select "PROGRAMMABLE MODULE INSTALLATION".
Select "ABS/TCS".
Retrieve DTCs using the WDS or equivalent, then verify that there is no DTC present.
- If any DTC is present, perform applicable DTC inspection.
