Bench Testing: Rectifier: 2.3L

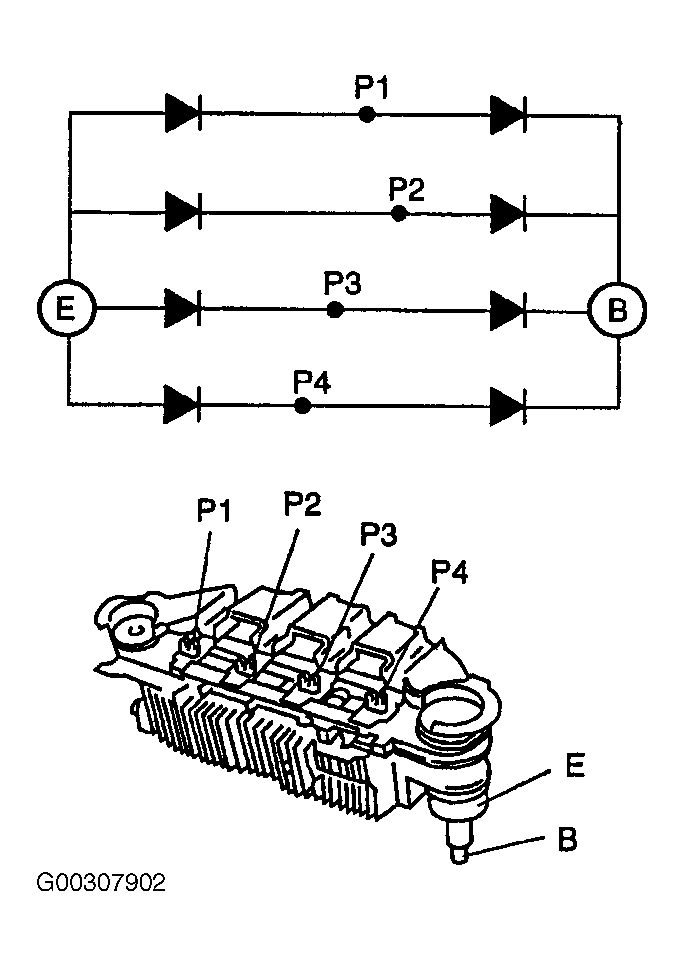

Using DVOM, check diodes for continuity. See RECTIFIER DIODE CONTINUITY (2.3L) table. See Fig 1. Replace rectifier if continuity is not as specified.
RECTIFIER DIODE CONTINUITY (2.3L)
| Tester Negative Probe | Tester Positive Probe | Continuity |
|---|---|---|
| E | P1, P2, P3 & P4 | Yes |
| B | P1, P2, P3 & P4 | No |
| P1, P2, P3 & P4 | E | No |
| P1, P2, P3 & P4 | B | Yes |
