PID/Data Monitor And Record Procedure: Notes

  1. Connect the SST  (WDS or equivalent) to the vehicle DLC-2 16-pin connector.
  2. Access and monitor PIDs  using the SST  (WDS or equivalent).

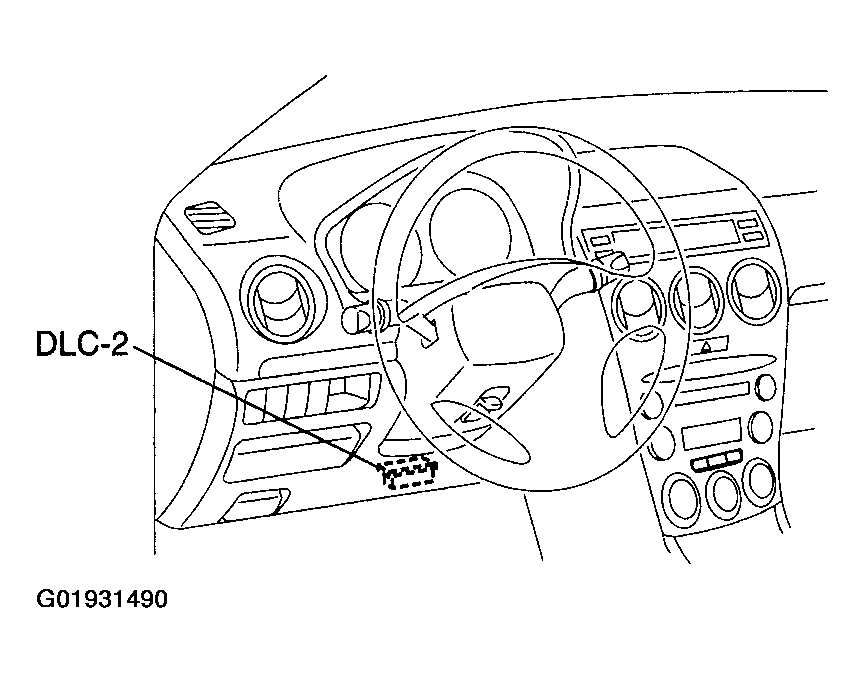

    Fig 1: Locating DLC-2 16-Pin Connector
    G01931490Courtesy of MAZDA MOTORS CORP.
