Engine Technical Data

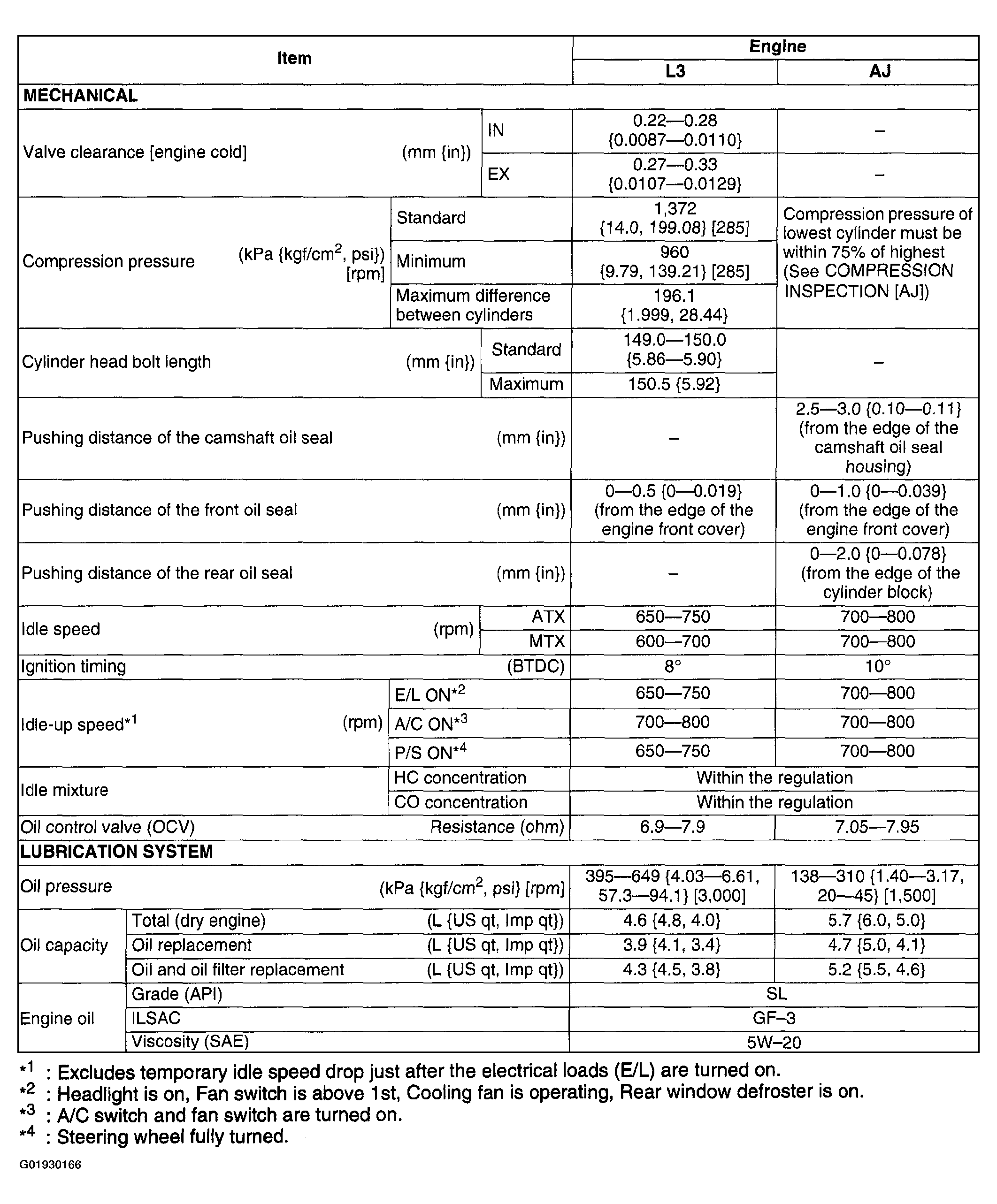

Fig 1: Engine Technical Data Chart (1 Of 3)
G01930166Courtesy of MAZDA MOTORS CORP.

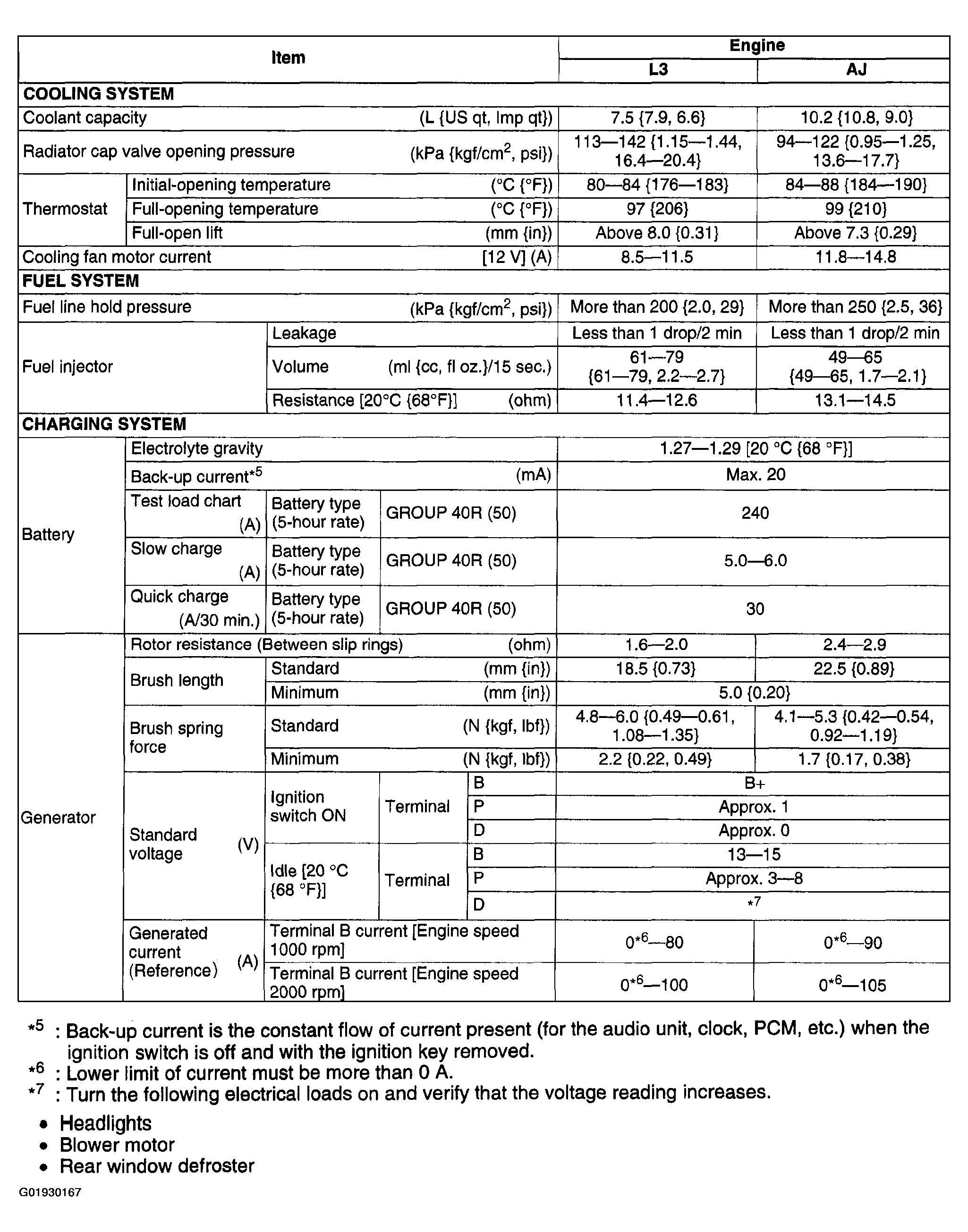

Fig 2: Engine Technical Data Chart (2 Of 3)
G01930167Courtesy of MAZDA MOTORS CORP.

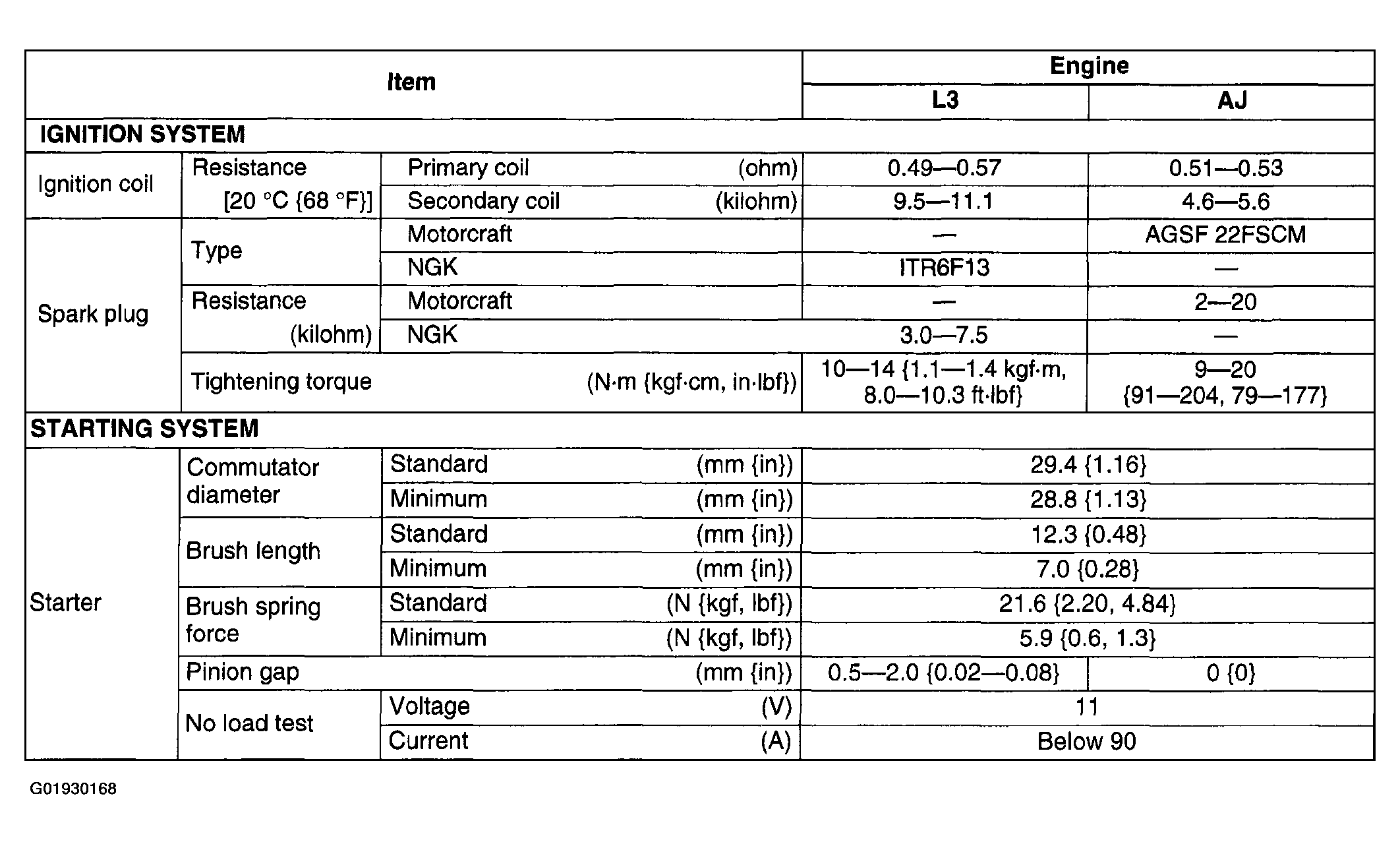

Fig 3: Engine Technical Data Chart (3 Of 3)
G01930168Courtesy of MAZDA MOTORS CORP.
