Selector Lever Component Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove battery and battery tray.
  3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)
  4. Remove the center console.
  5. Remove the dashboard completely. (See DASHBOARD REMOVAL/INSTALLATION .)
  6. Remove the SAS control module. (See SAS CONTROL MODULE .)
  7. Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL .) (See CLIMATE CONTROL UNIT INSTALLATION .)
  8. Remove the rear heat duct. (See REAR HEAT DUCT REMOVAL/INSTALLATION .)
  9. Remove in the order shown in Fig 1 .

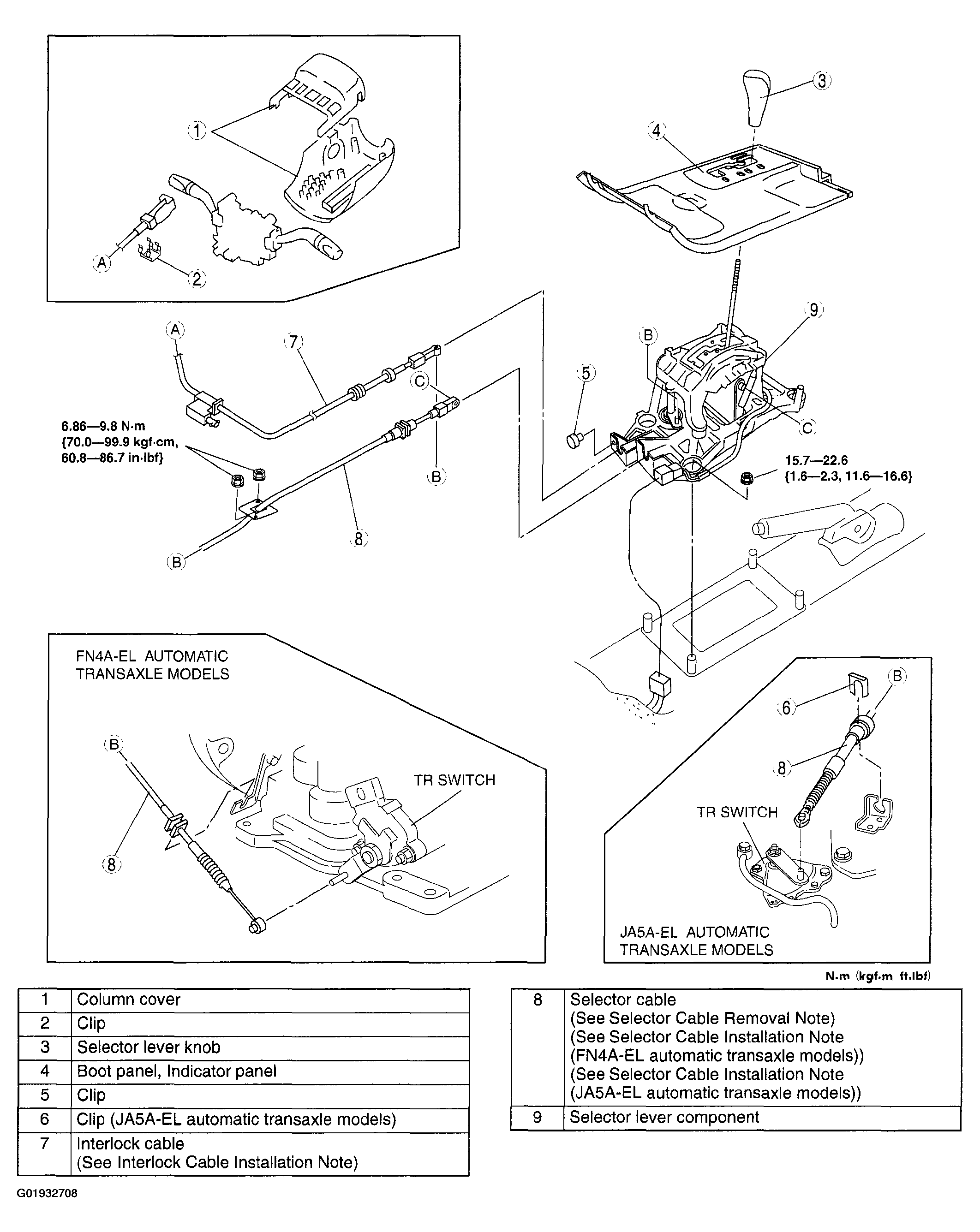

    Fig 1: Identifying Selector Lever Components
    G01932708Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
