Ignition Switch Inspection
Ignition Switch Inspection

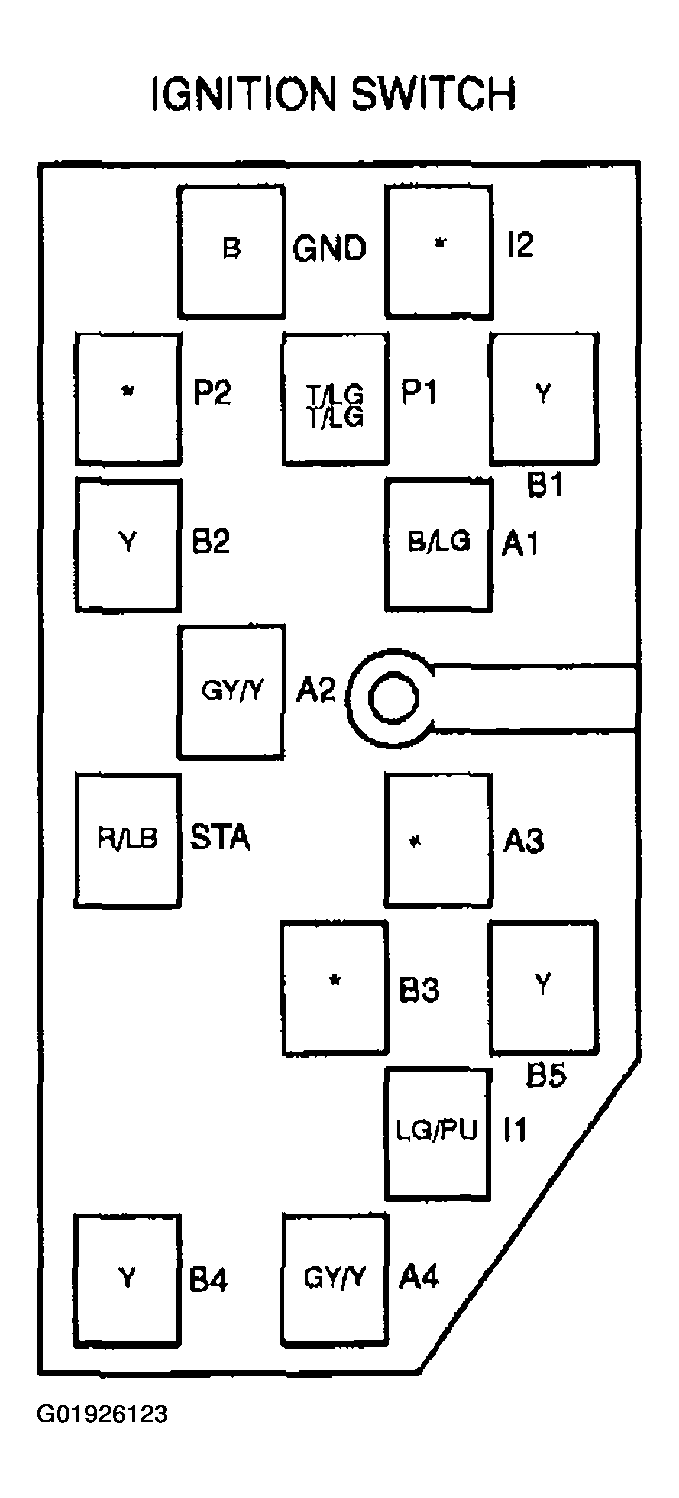

Fig 1: Identifying Ignition Switch
Courtesy of MAZDA MOTORS CORP.

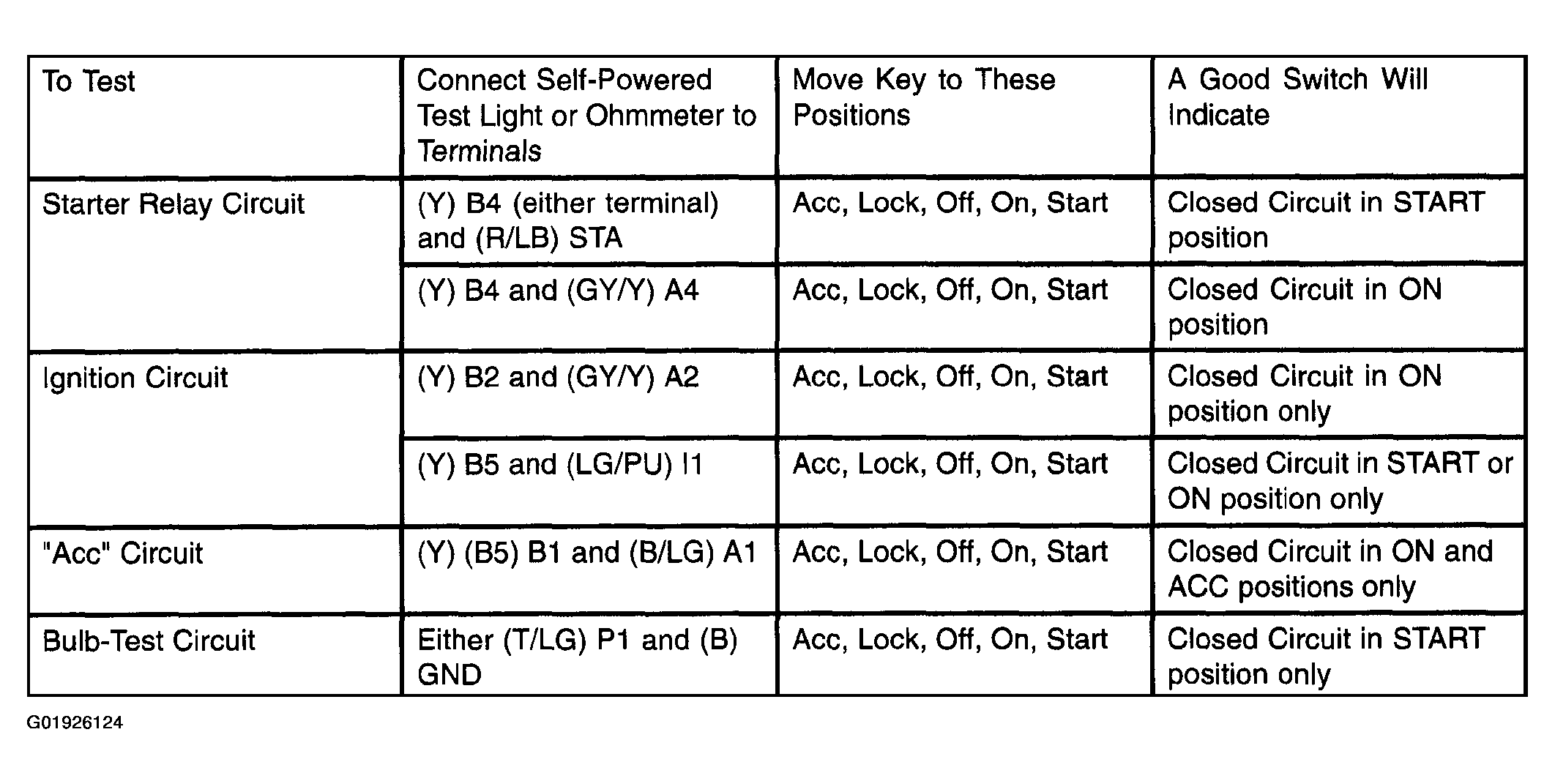

Fig 2: Ignition Switch Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
