Removal Note:: Notes

WARNING:
  • Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
  • After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING:
  • Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.

Vehicles with safety belt buckle pretensioners

  1. Prepare the vehicle for front seat removal.
    WARNING:
    • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

    To deplete the backup power supply energy, disconnect the negative battery cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

    1. Disconnect the negative battery cable.
      WARNING:
      • To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
    2. Deactivate the supplemental restraint system (SRS). See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND ACTIVATION  .
  2. Position the seat to its forward most position.
  3. Disconnect the safety belt buckle pretensioner electrical connector.
  4. Driver seats without safety belt buckle pretensioners, disconnect the safety belt usage switch electrical connector.

    All Vehicles

  5. Move the seat to its rear most position.

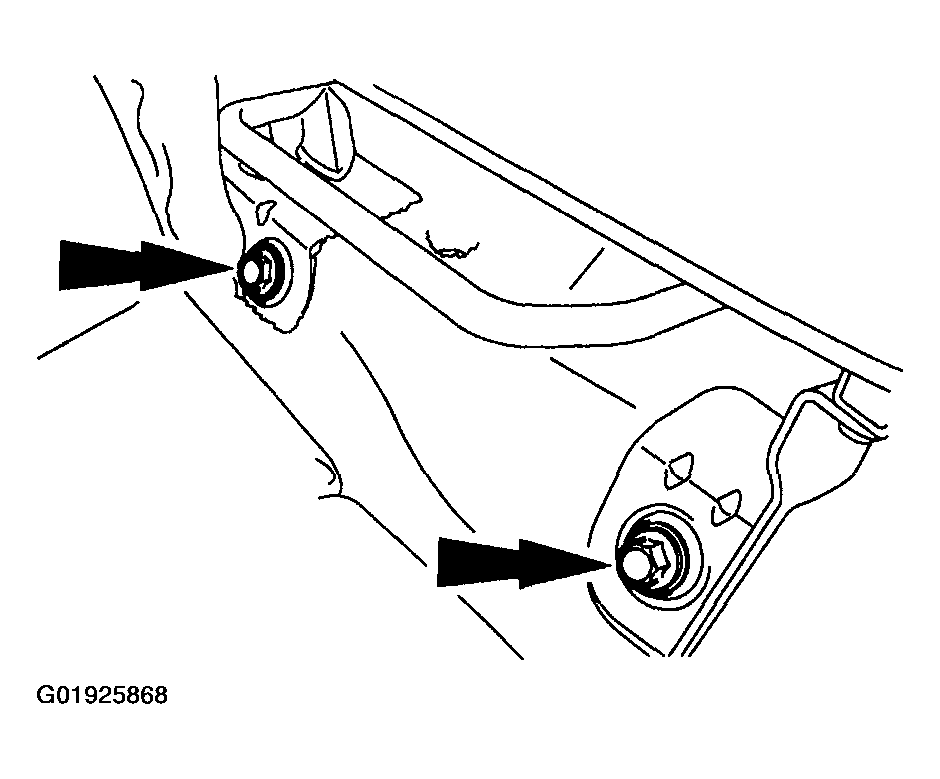

    Fig 1: Removing Seat Front Bolts
    G01925868Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts.
  7. Move the seat to its forward most position.

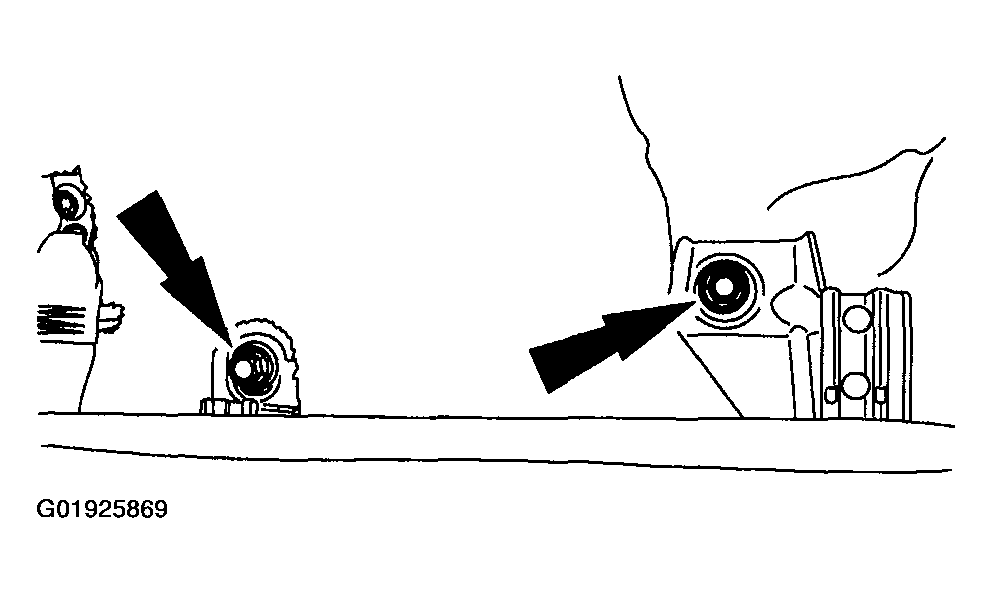

    Fig 2: Removing Seat Rear Bolts
    G01925869Courtesy of MAZDA MOTORS CORP.
  8. Remove the bolts.

    Vehicles With 60 Percent Bench Seat

    Fig 3: Removing Safety Belt Buckle Bolt
    G01925870Courtesy of MAZDA MOTORS CORP.
  9. Using special tool 501-010, remove the safety belt buckle bolt.

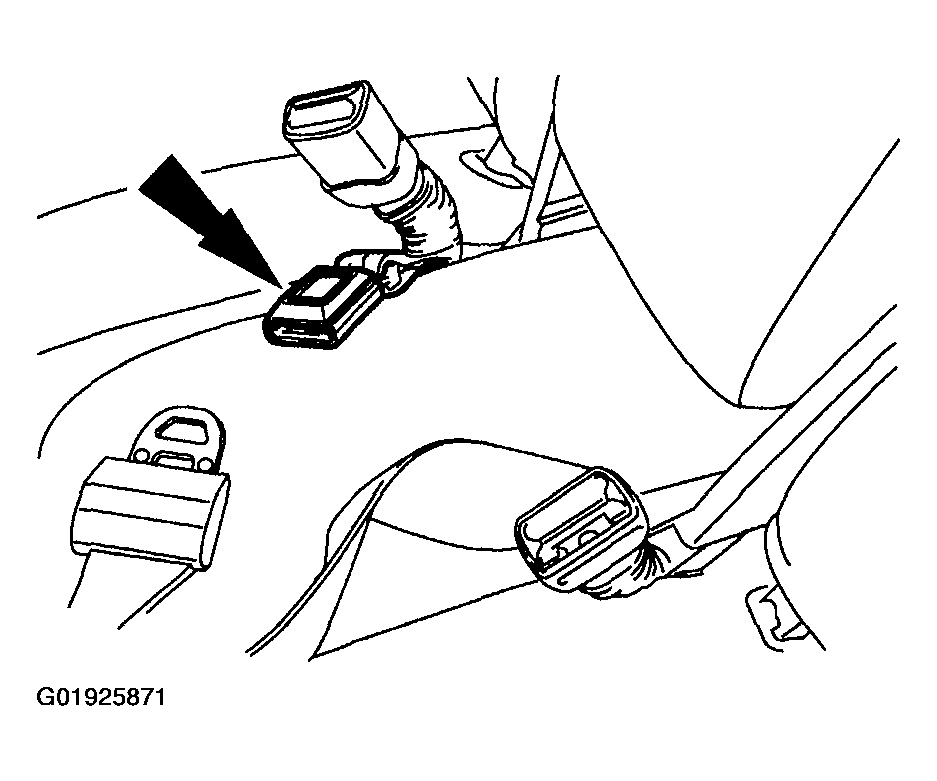

    Fig 4: Routing Center Safety Belt Buckle Through Locating Strap On Side Of Seat
    G01925871Courtesy of MAZDA MOTORS CORP.
  10. Route the center safety belt buckle through the locating strap on the side of the seat.

    All Vehicles

  11. Remove the seat from the vehicle.
