Indicator/Warning Bulb Removal/Installation

WARNING:
  • Illumination bulbs are pressurized and may shatter if improperly handled. Wear eye protection when replacing illumination bulbs.
  1. Remove the instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION  .
  2. Remove the illumination sockets and bulbs.

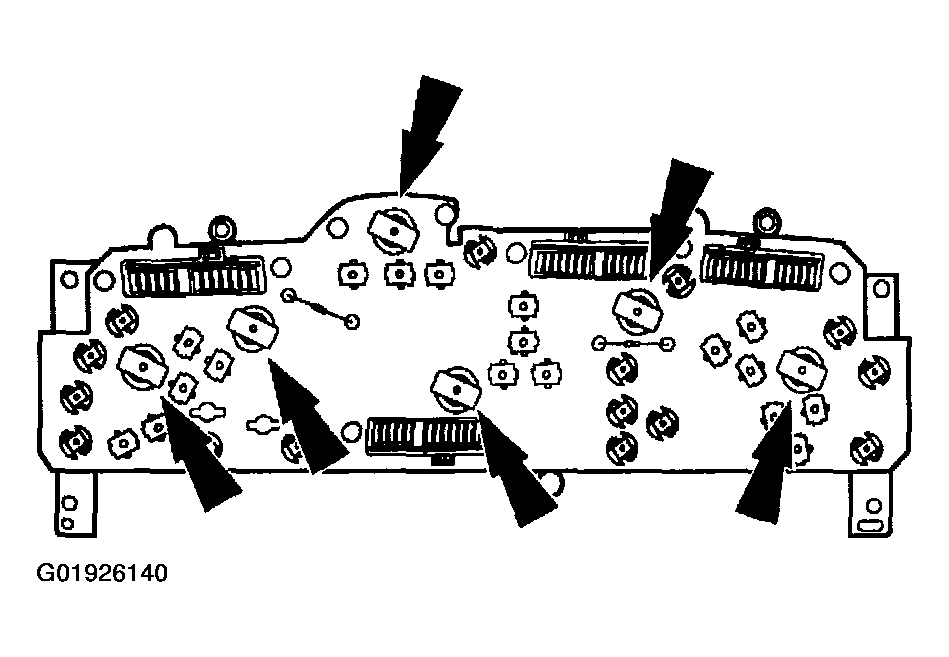

    Fig 1: Removing Illumination Sockets And Bulbs
    G01926140Courtesy of MAZDA MOTORS CORP.
  3. Remove the indicator sockets and bulbs.

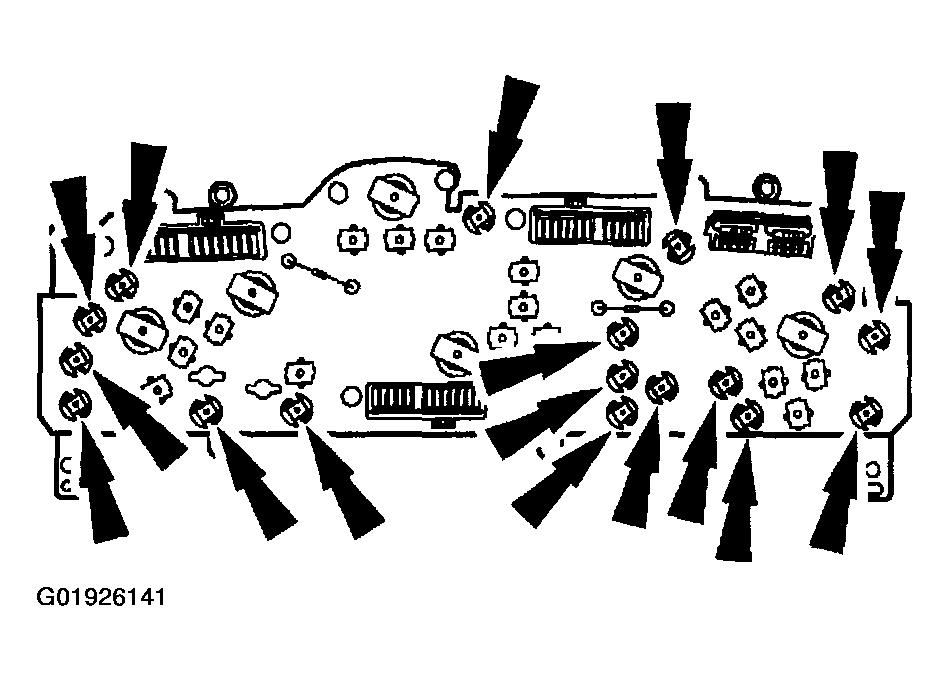

    Fig 2: Removing Indicator Sockets And Bulbs
    G01926141Courtesy of MAZDA MOTORS CORP.
  4. Install in reverse order of removal.
