Steering Column Disassembly/Assembly: Notes

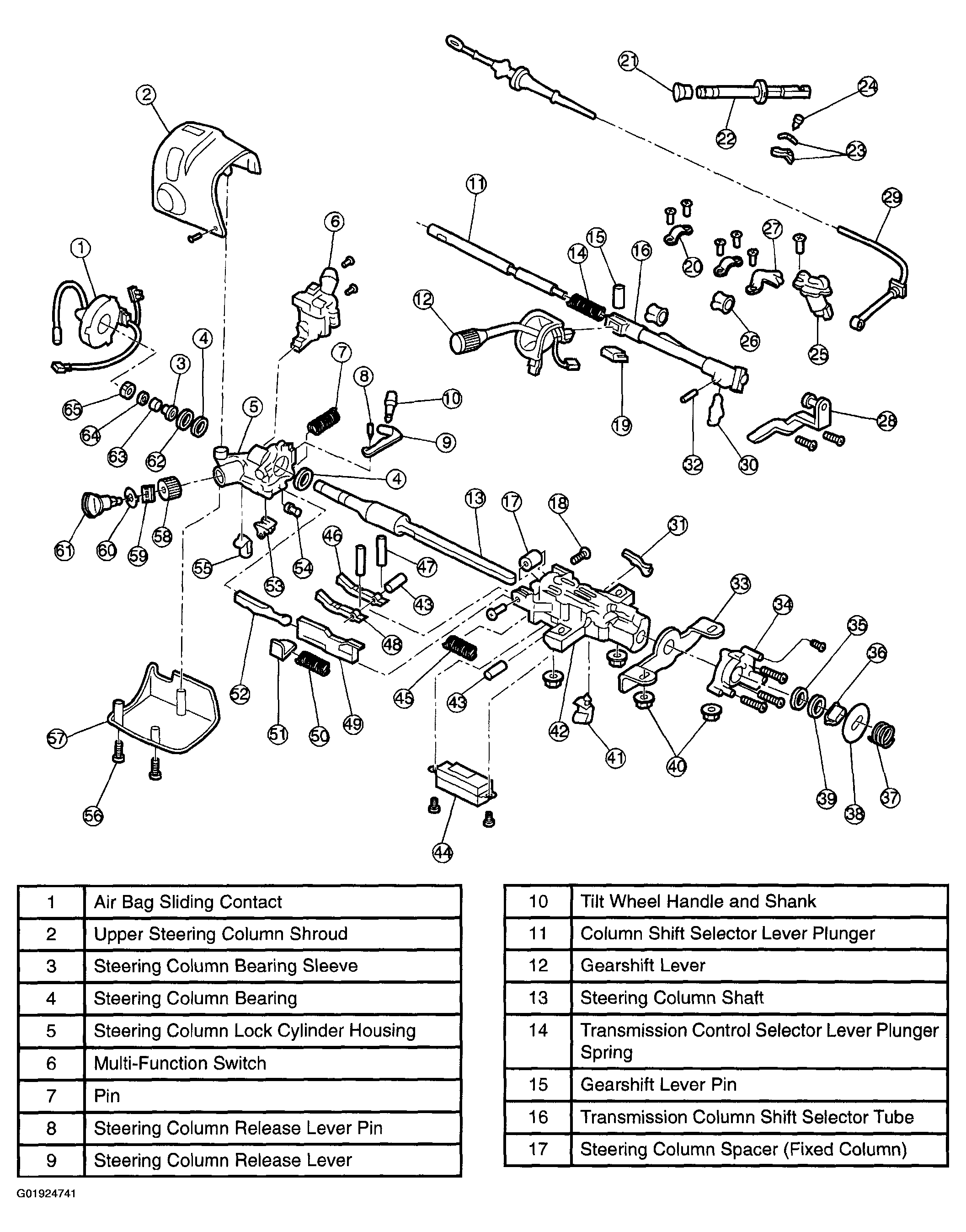

Fig 1: Exploded View Of Steering Column (Items 1-17)

Courtesy of MAZDA MOTORS CORP.

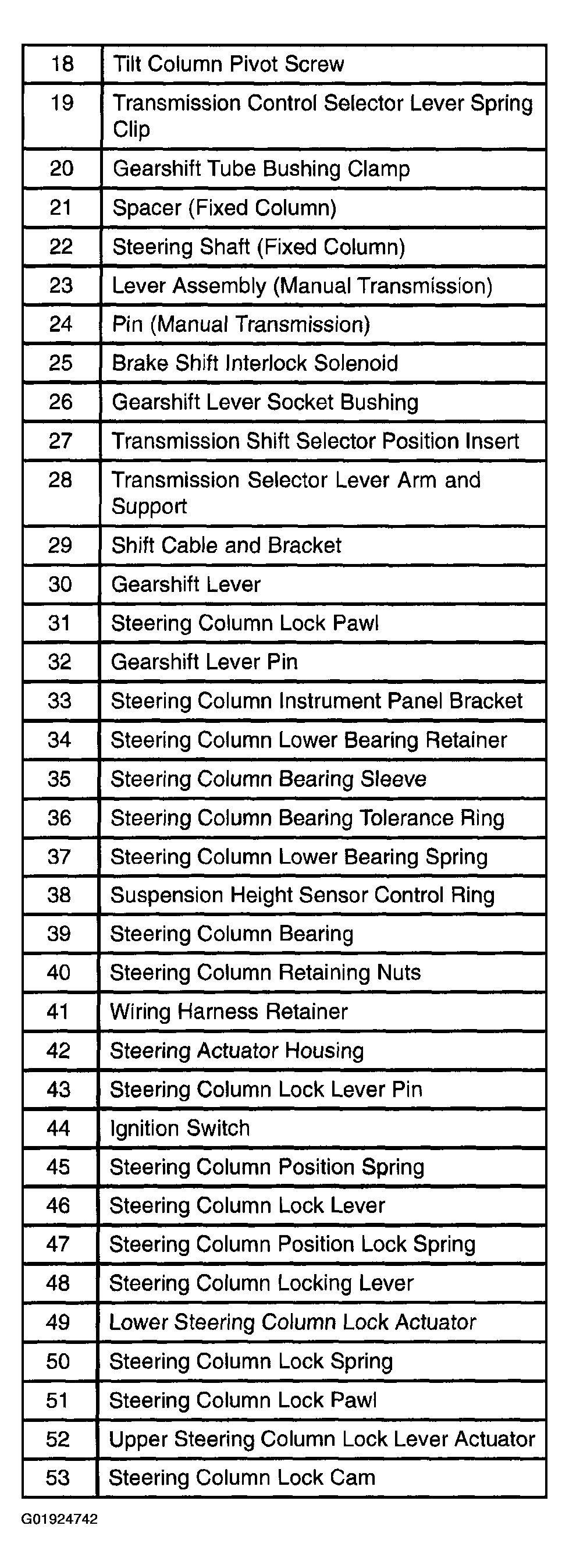

Fig 2: Exploded View Of Steering Column (Items 18-53)

Courtesy of MAZDA MOTORS CORP.

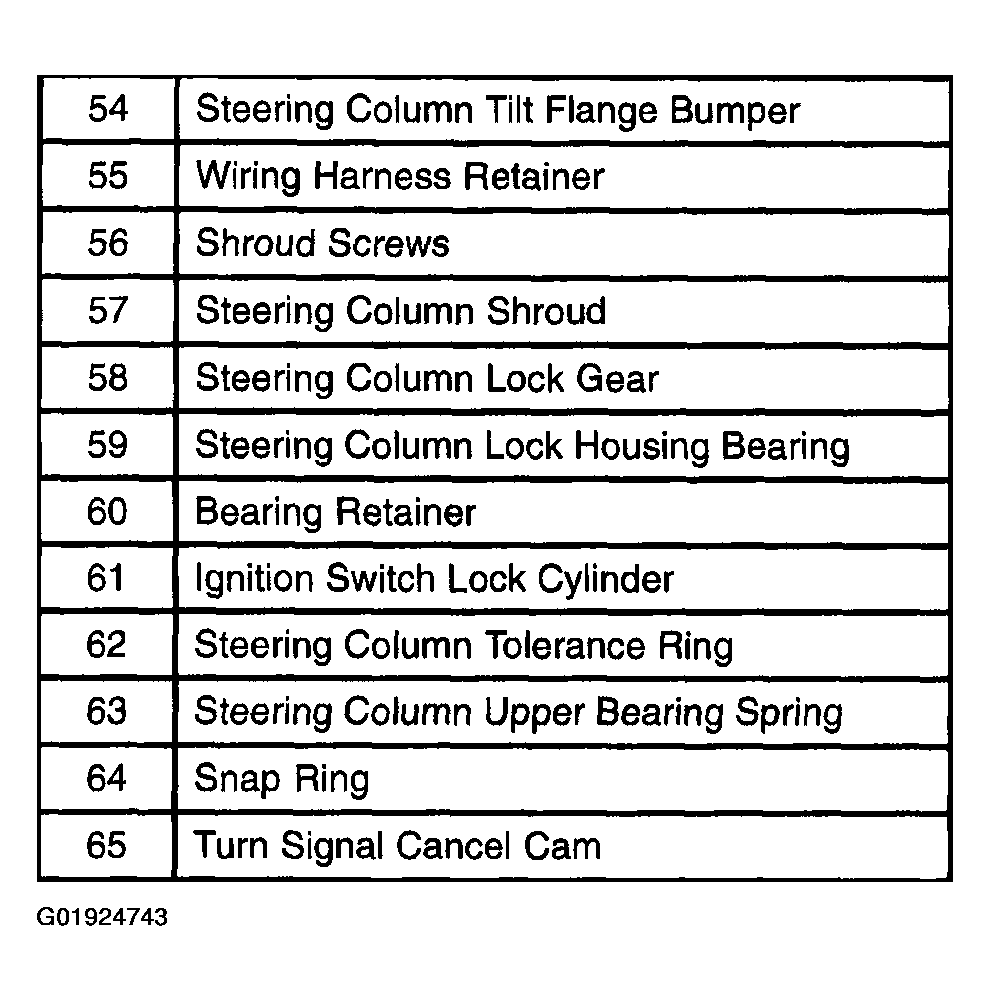

Fig 3: Exploded View Of Steering Column (Items 54-65)

Courtesy of MAZDA MOTORS CORP.
