DSC System Diagram

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

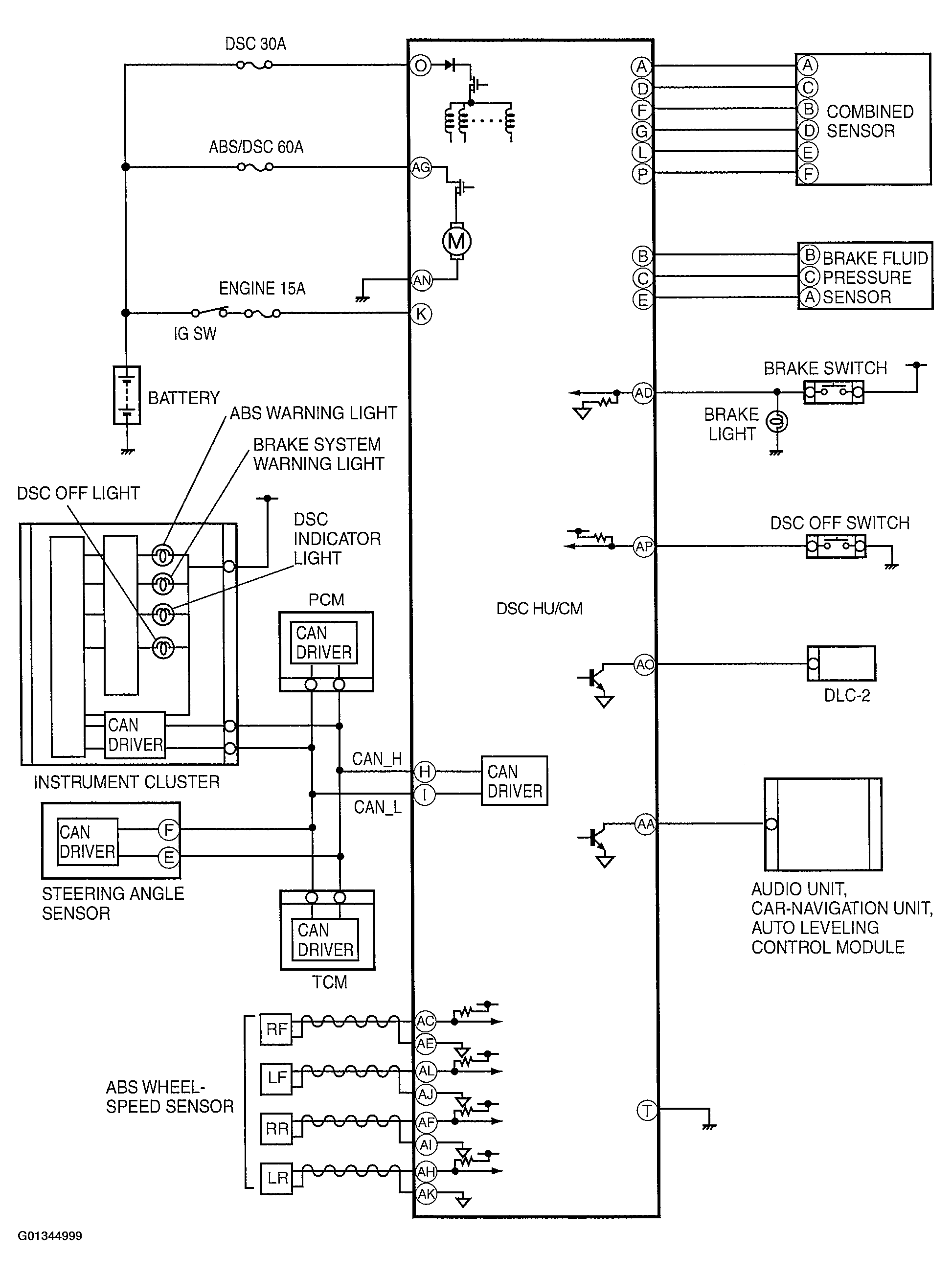

Fig 1: DSC System Diagram
G01344999Courtesy of MAZDA MOTORS CORP.
