Hood Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure below.

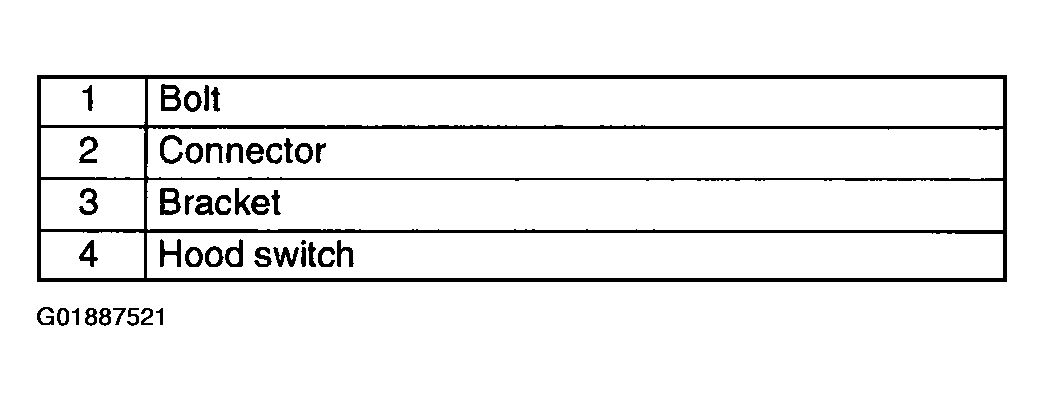

    Fig 1: Hood Switch Component Table
    G01887521Courtesy of MAZDA MOTORS CORP.

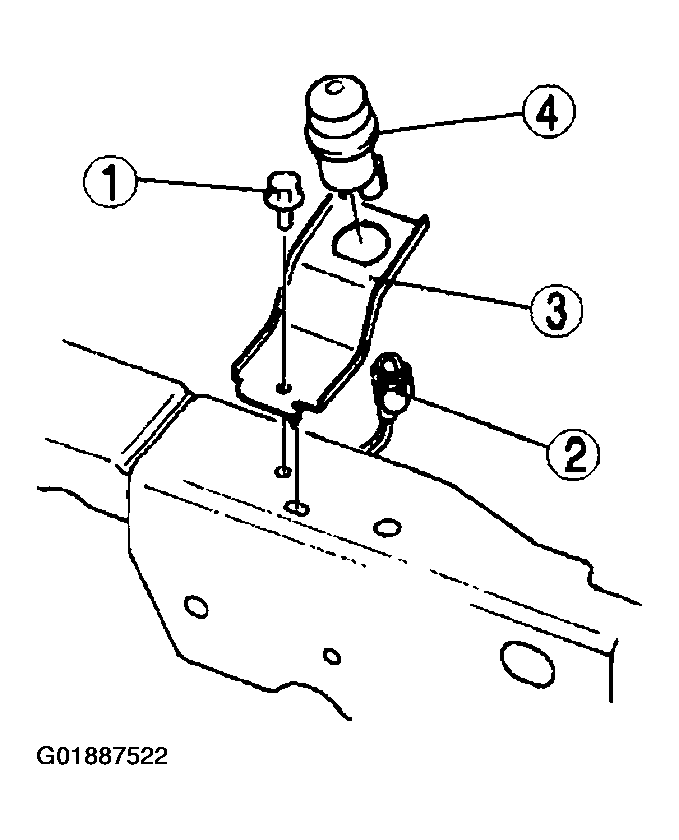

    Fig 2: Removing Hood Switch
    G01887522Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
