Bracket Disassembly Note

  1. To disassemble the bracket, push the stopper down with a small screwdriver.

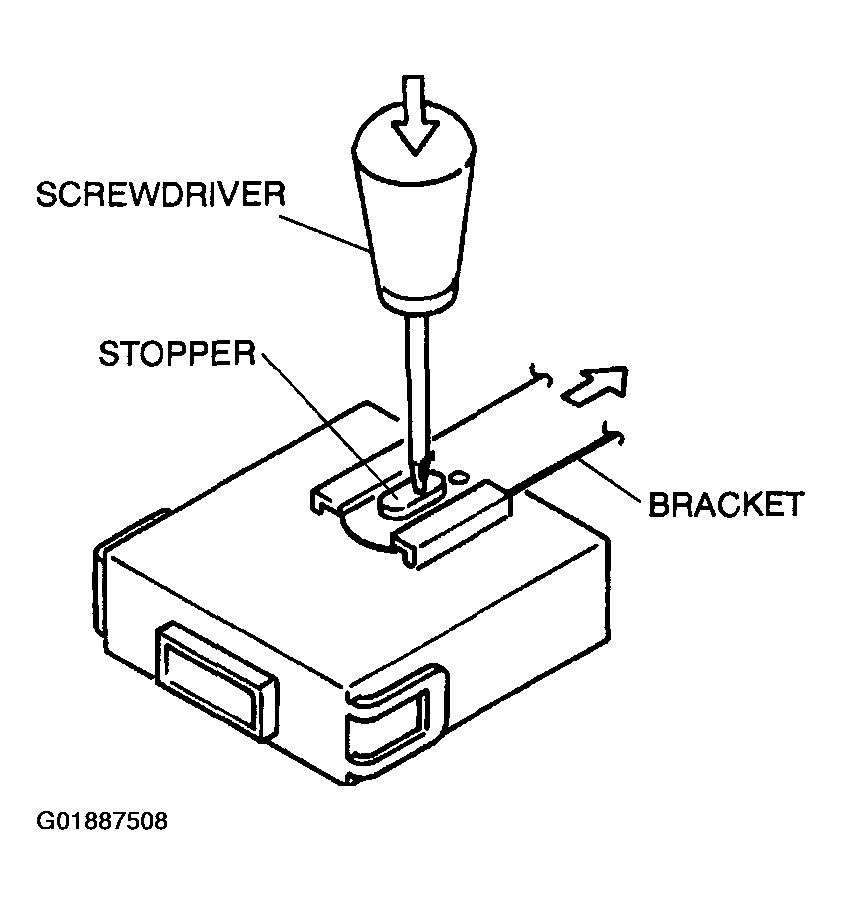

    Fig 1: Pushing Stopper Down With A Small Screwdriver
    G01887508Courtesy of MAZDA MOTORS CORP.
