Keyless Control Module Removal/Installation

Disconnect the negative battery cable.
Remove in the order indicated in the figure below.

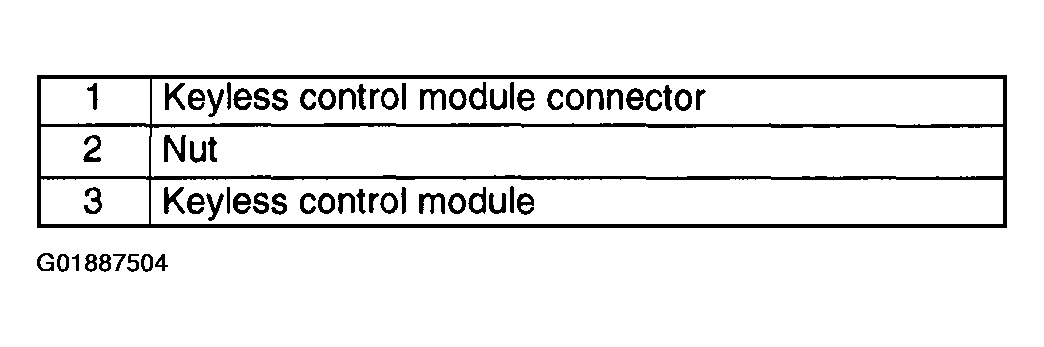

Fig 1: Keyless Control Module Component Table
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

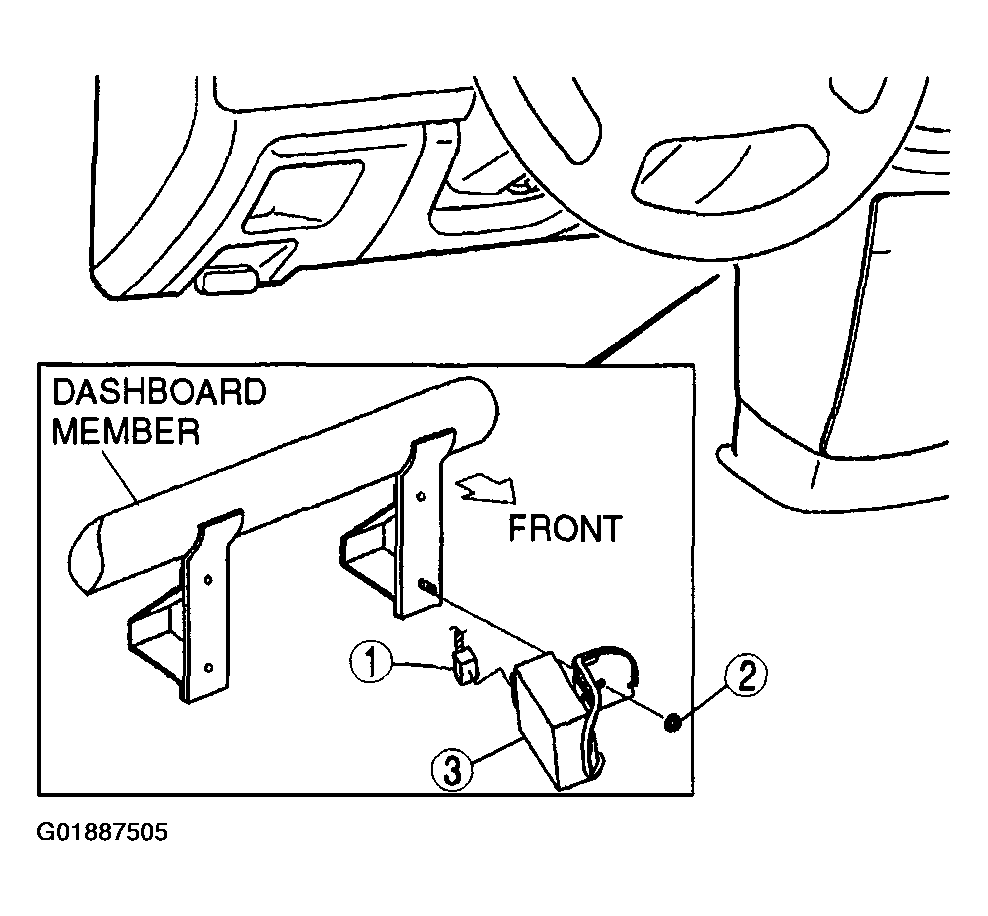

Fig 2: Identifying Keyless Control Module Component
Courtesy of MAZDA MOTORS CORP.
