Key Reminder Switch Inspection

  1. Disconnect the key reminder switch connector.
  2. Inspect for continuity between the key reminder switch terminals using an ohmmeter.
    • If not as specified, replace the key reminder switch.

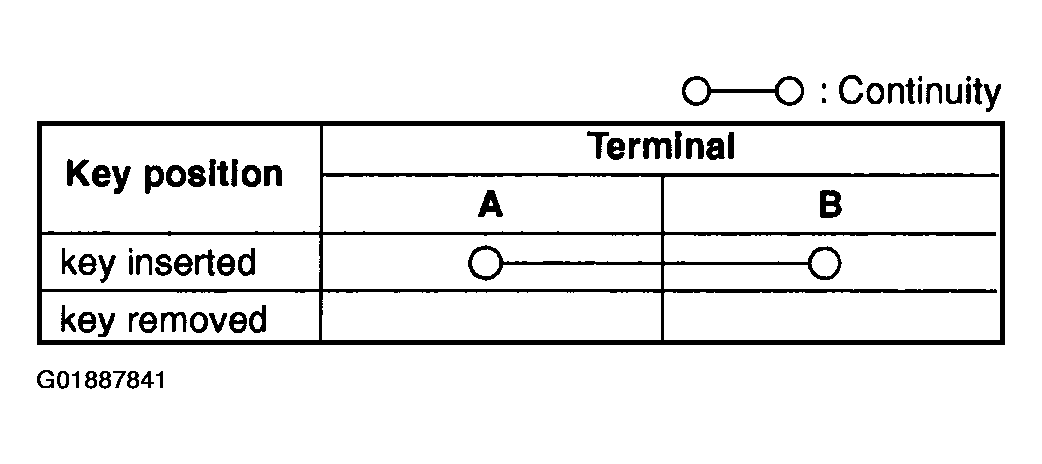

      Fig 1: Checking Key Reminder Switch Continuity
      G01887841Courtesy of MAZDA MOTORS CORP.

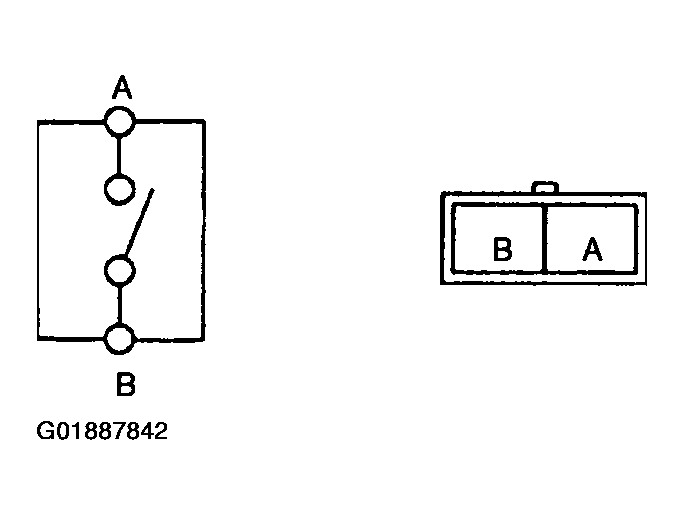

      Fig 2: Identifying Key Reminder Switch Terminals & Circuits
      G01887842Courtesy of MAZDA MOTORS CORP.
