Key Reminder Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Disconnect the key reminder switch connector.
  4. Remove the key reminder switch.
  5. Install in the reverse order of removal.

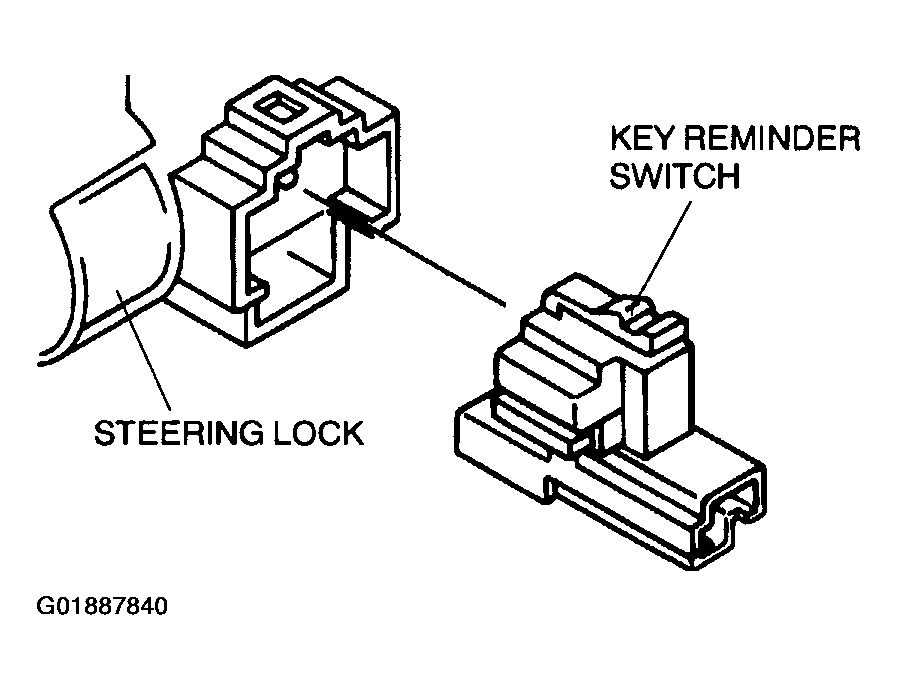

    Fig 1: Removing Key Reminder Switch
    G01887840Courtesy of MAZDA MOTORS CORP.
