Room Fuse Installation

NOTE:
  • When the ROOM fuse is burnt or removed, the malfunction indicator lamp illuminates. If the ROOM fuse is replaced or installed with the ignition switch at ON position, the malfunction indicator lamp will continue to illuminate.
  1. Turn the ignition switch to LOCK position.
  2. Install the ROOM 15 A fuse.

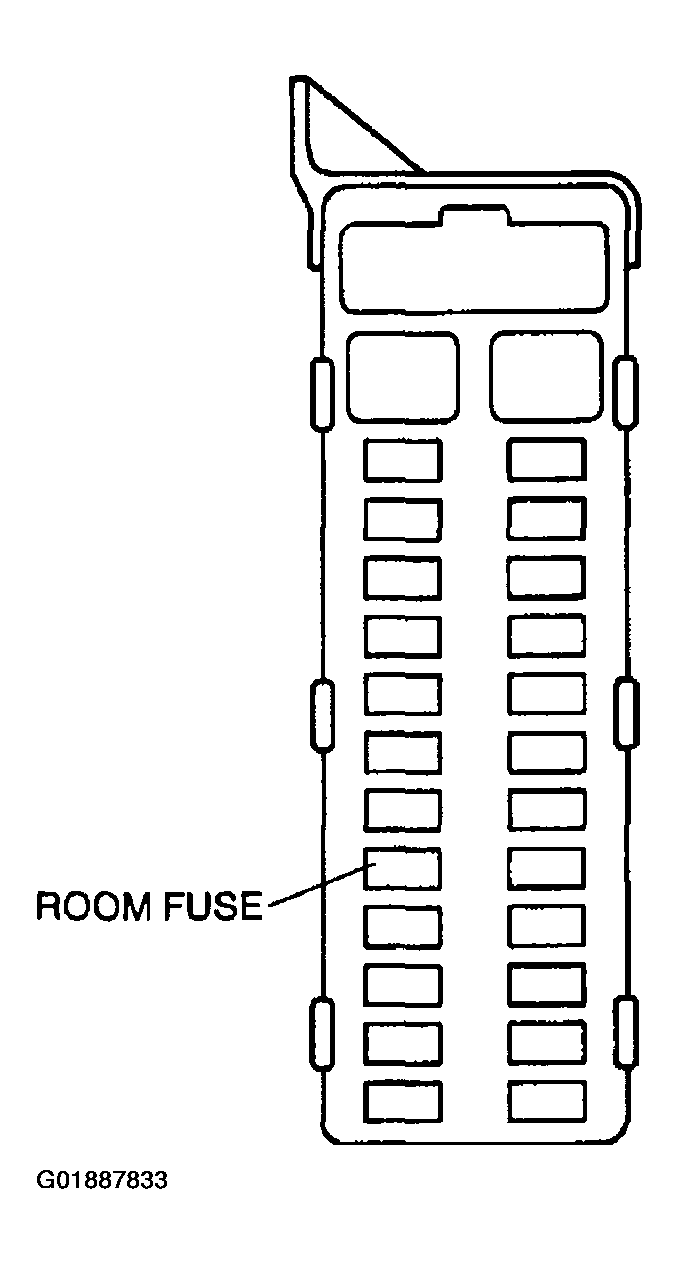

    Fig 1: Identifying Room Fuse Location
    G01887833Courtesy of MAZDA MOTORS CORP.
