Power Window Main Switch Inspection
>>
Driver's side
Driver's side

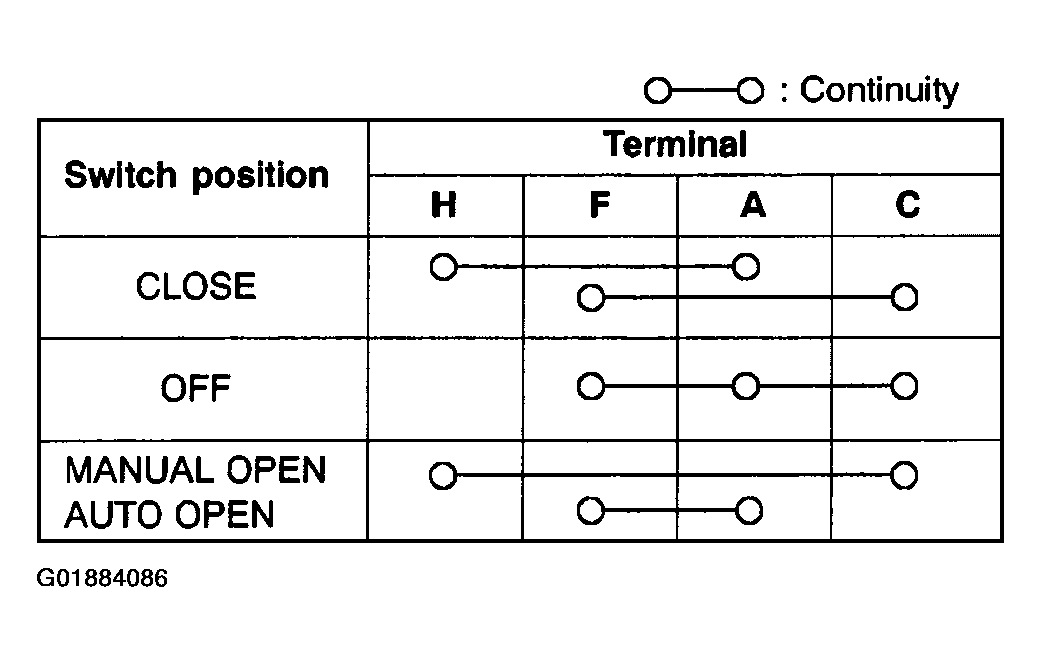

Fig 1: Power Window Main Switch Continuity/Position Table (Driver's Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
