Rearview Mirror Removal

  1. Insert a flathead screwdriver between the mirror and the base.
  2. Push the base pin down to remove the rearview mirror.

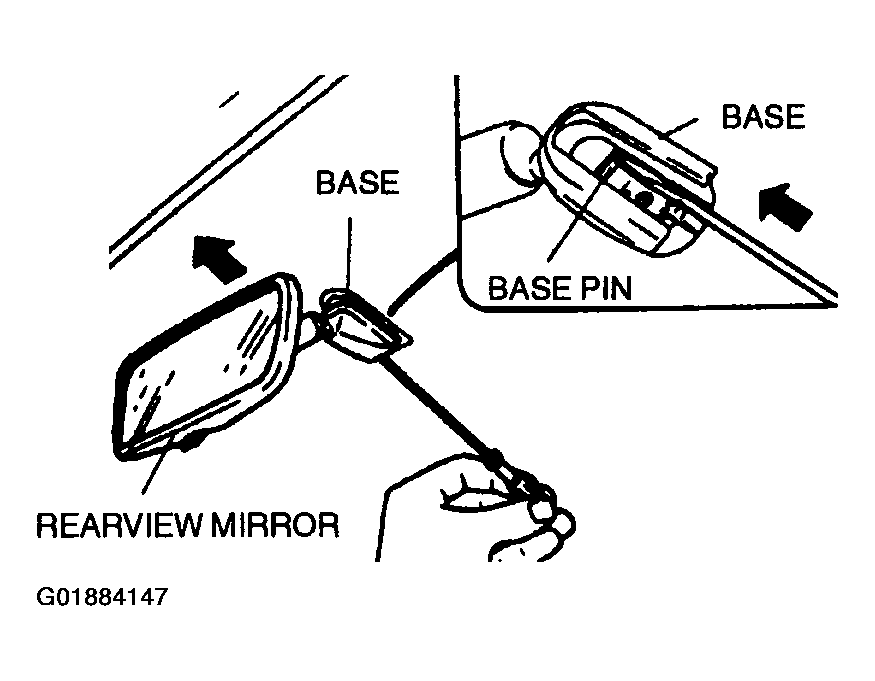

    Fig 1: Removing Rearview Mirror
    G01884147Courtesy of MAZDA MOTORS CORP.
