Regulator Handle Installation

  1. Install the clip in the regulator handle.
  2. Close the door glass fully and push the regulator handle on as shown.

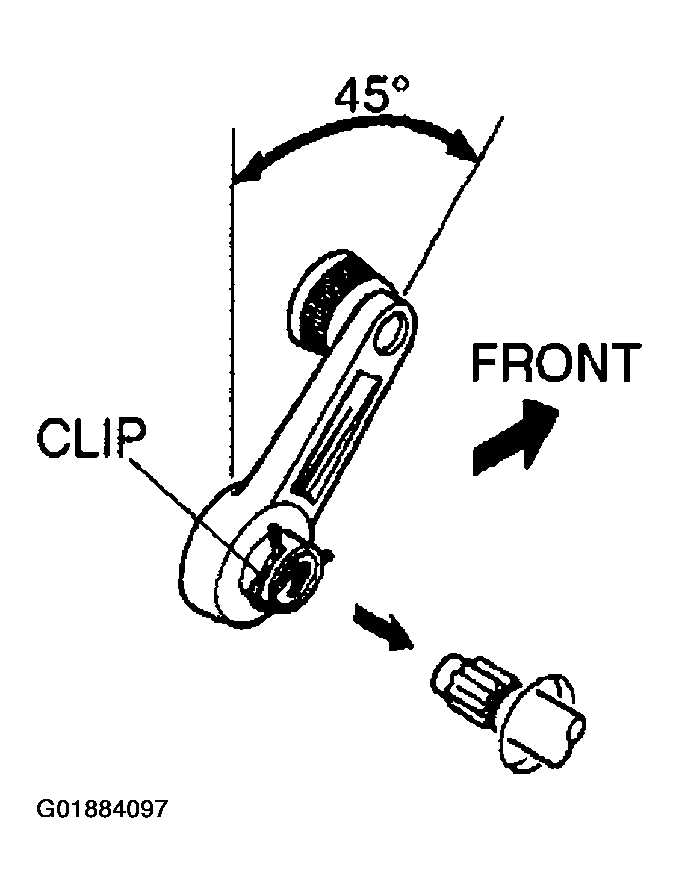

    Fig 1: Identifying Regulator Handle Installation Position
    G01884097Courtesy of MAZDA MOTORS CORP.
