Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

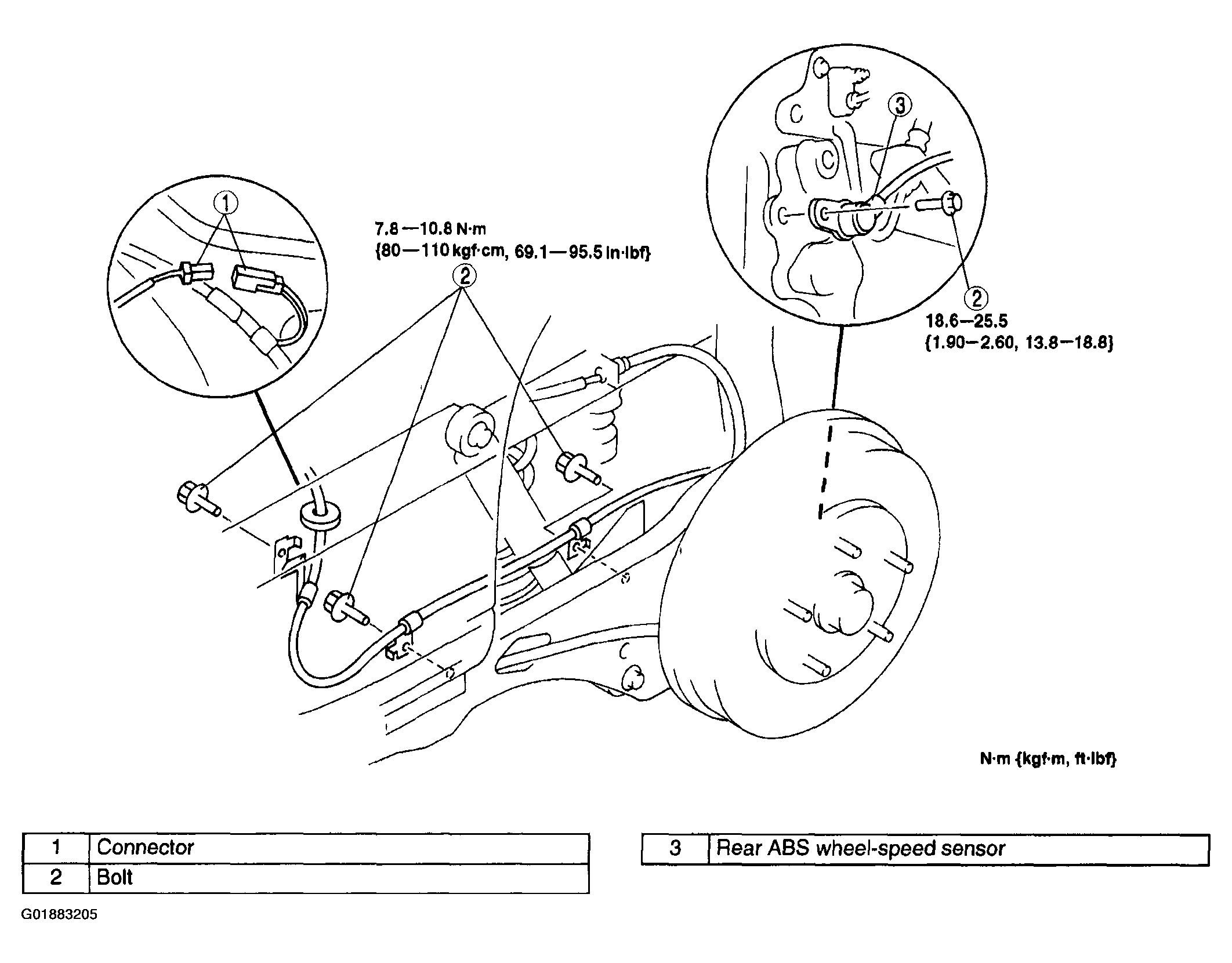

    Fig 1: Removal Order Of Rear ABS Wheel-Speed Sensor
    G01883205Courtesy of MAZDA MOTORS CORP.
