Radiator Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS  .) See ENGINE COOLANT REPLACEMENT  .)
  3. Remove the front bumper (See FRONT BUMPER REMOVAL/INSTALLATION ).
  4. Remove the hood lock. (See HOOD REMOVAL/INSTALLATION .)
  5. Remove the A/C bracket.

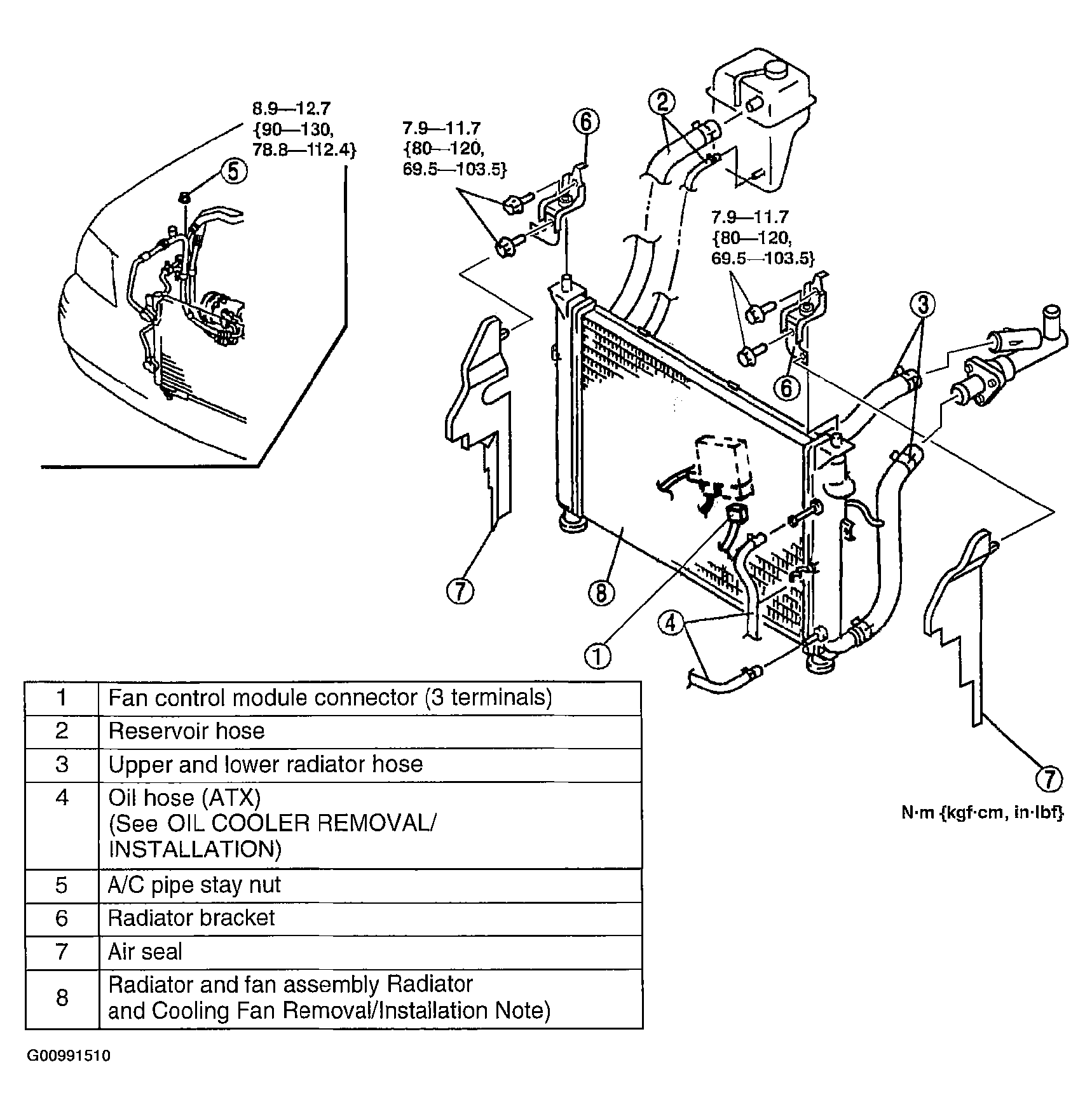

    Fig 1: Removing/Installing Radiator
    G00991510Courtesy of MAZDA MOTORS CORP.
