Water Pump Removal/Installation: Notes

  1. Remove the battery and battery tray. .
  2. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS  .) (see ENGINE COOLANT REPLACEMENT  .)
  3. Remove the water pump drive pulley. (See WATER PUMP DRIVE BELT PULLEY REMOVAL NOTE .)
  4. Remove in the order indicated in the table.
    Fig 1: Removing/Installing Order Of Water Pump
    G00991516Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.

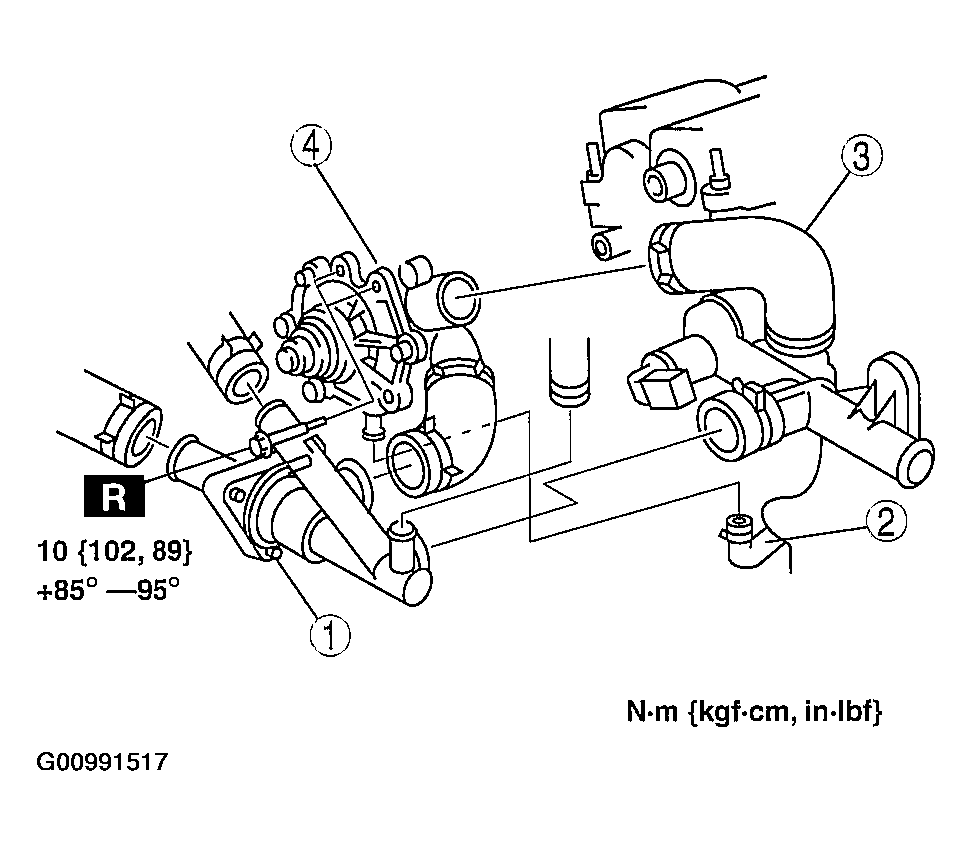

    Fig 2: Removing/Installing Water Pump
    G00991517Courtesy of MAZDA MOTORS CORP.
