Vacuum Diagrams: Introduction: B2300

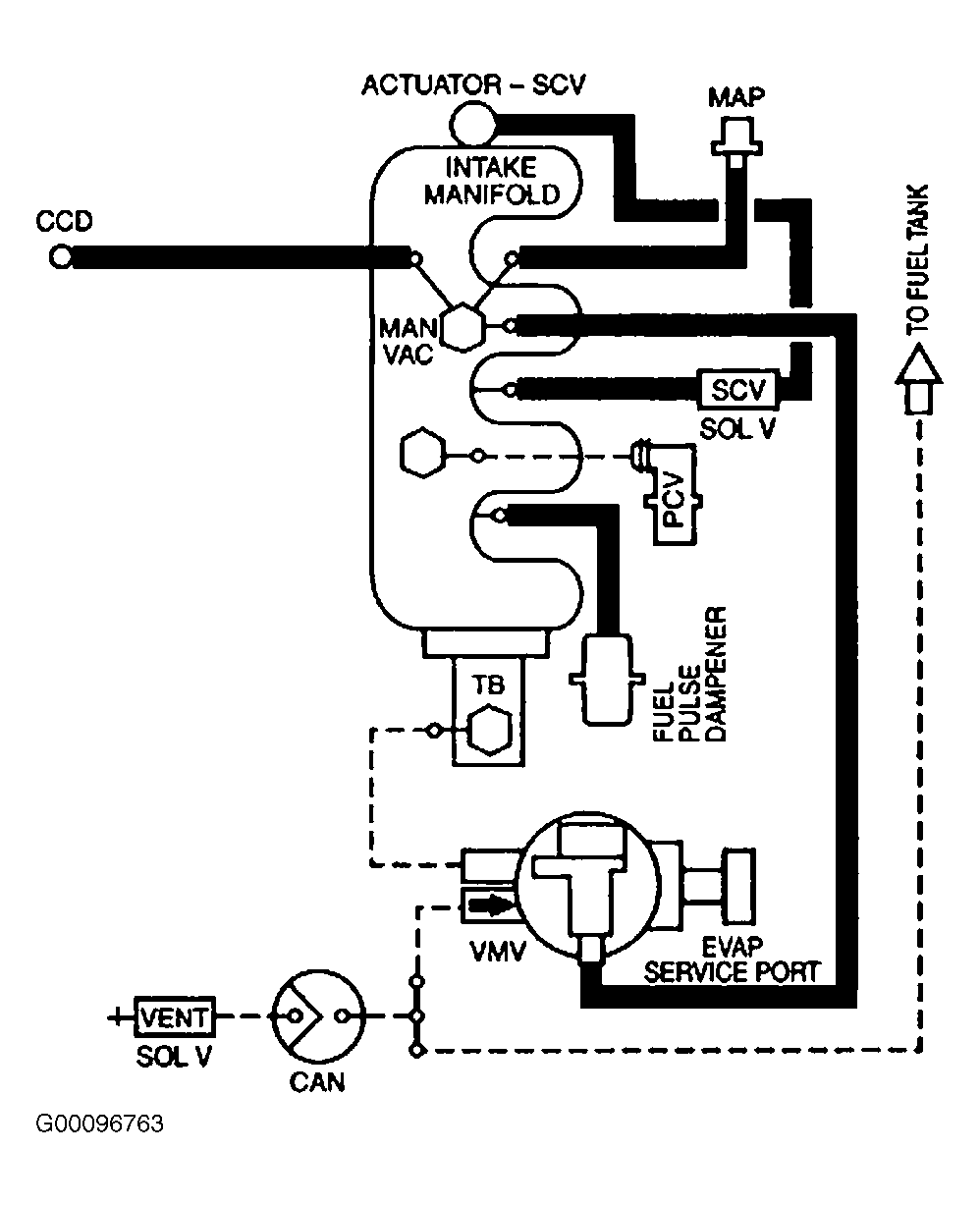

Fig 1: Vacuum Diagram - 2003 (B2300 2.3L)

G00096763

Courtesy of FORD MOTOR CO.
