Audio Control Switch Inspection
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
- Disconnect the audio control switch connector.

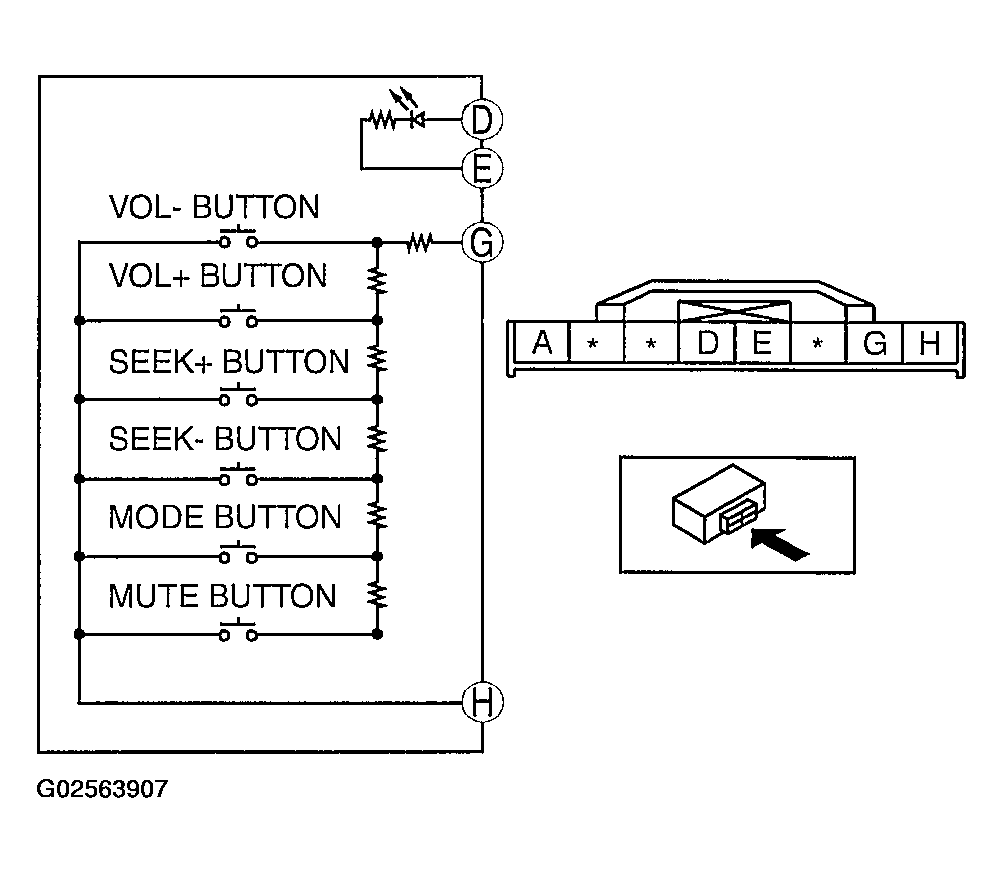

- Measure the resistance and inspect for continuity between the audio control switch/cruise control switch terminals using an ohmmeter.
- If not as specified, replace the audio control switch/cruise control switch.

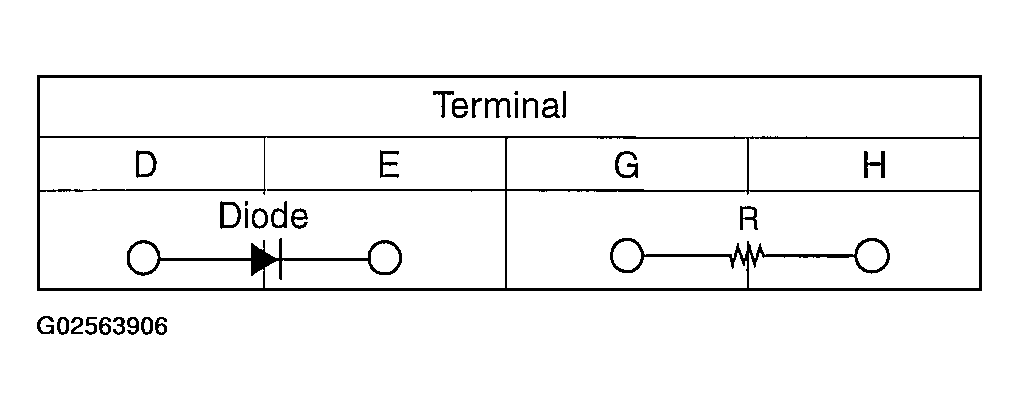

R: Resistance. See the table AUDIO CONTROL SWITCH RESISTANCE SPECIFICATION .
AUDIO CONTROL SWITCH RESISTANCE SPECIFICATIONSwitch Position Resistance (Ohms) VOL-switch ON 51-56 VOL+switch ON 140-154 SEEK+switch ON 286-315 SEEK-switch ON 534-589 MODE switch ON 985-1,080 MUTE switch ON 1,940-2,130 OFF 4,800-5,290
