Section 185 (Entertainment System)
>>
Front Tweeter Removal/Installation
>>
Front Tweeter Removal Note
Front Tweeter Removal Note
WARNING:
This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
Insert a hand between the A-pillar and the dashboard, then compress the hooks of the front tweeter from the back of the dashboard.

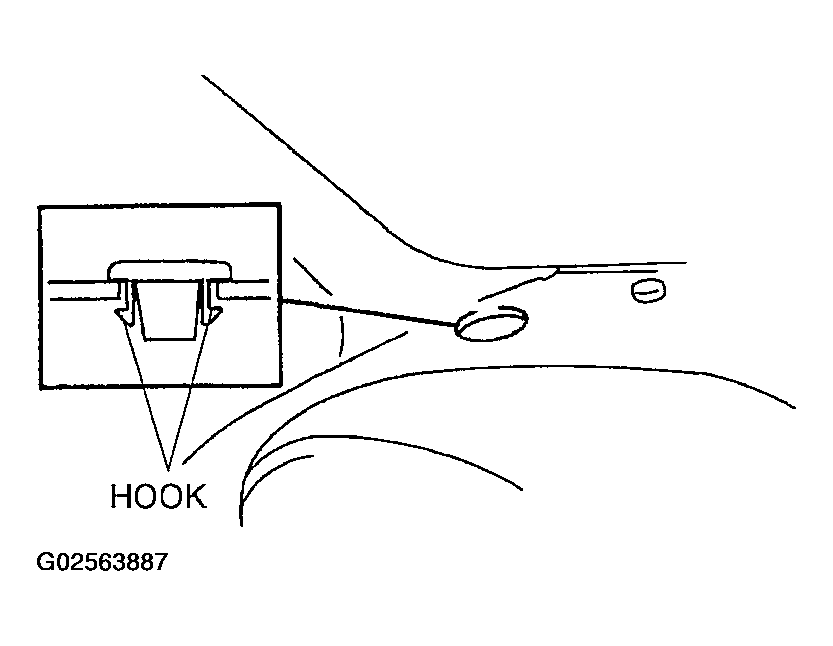

Fig 1: Compressing Hooks Of Front Tweeter
Courtesy of MAZDA MOTORS CORP.
