Accessory Socket Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
Remove in the order indicated.

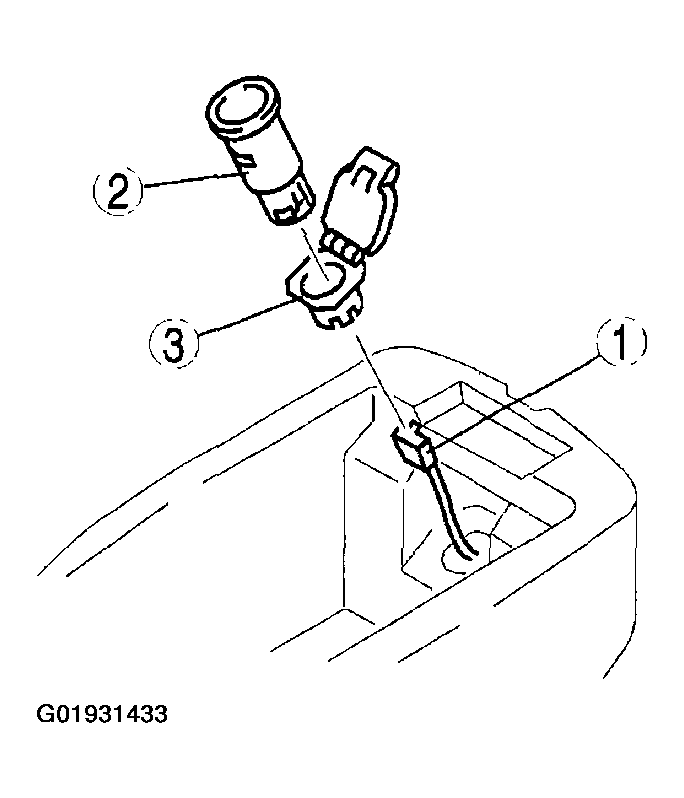

Fig 1: Identifying Accessory Socket Components
Courtesy of MAZDA MOTORS CORP.

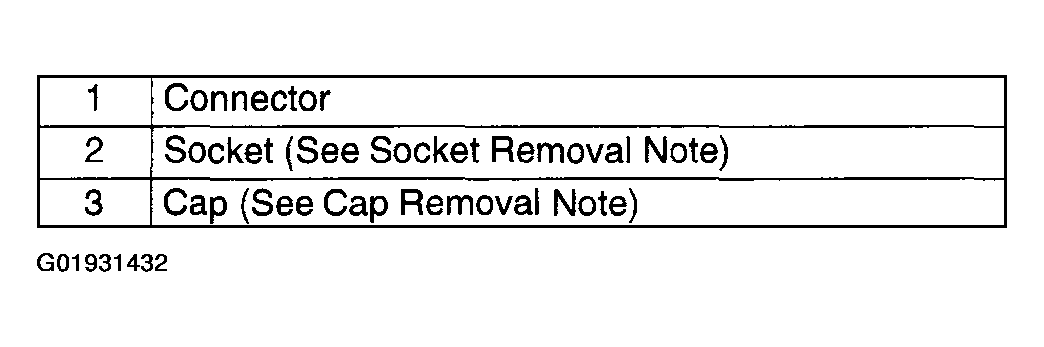

Fig 2: Accessory Socket Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
