Audio Control Switch Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The audio control switch and the cruise control switch use a common connector.

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE .)
Remove the steering wheel.
Remove in the order indicated.

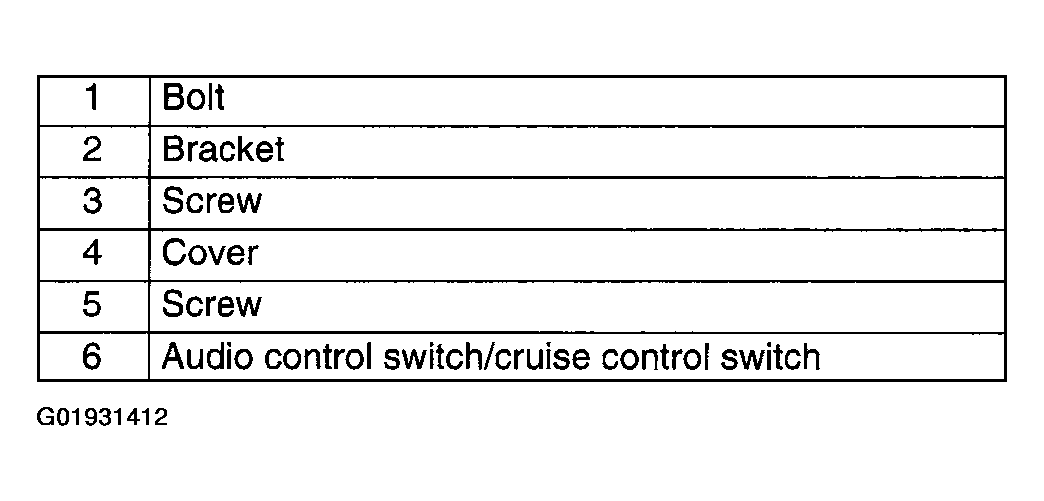

Fig 1: Identifying Audio Control Switch Components
Courtesy of MAZDA MOTORS CORP.

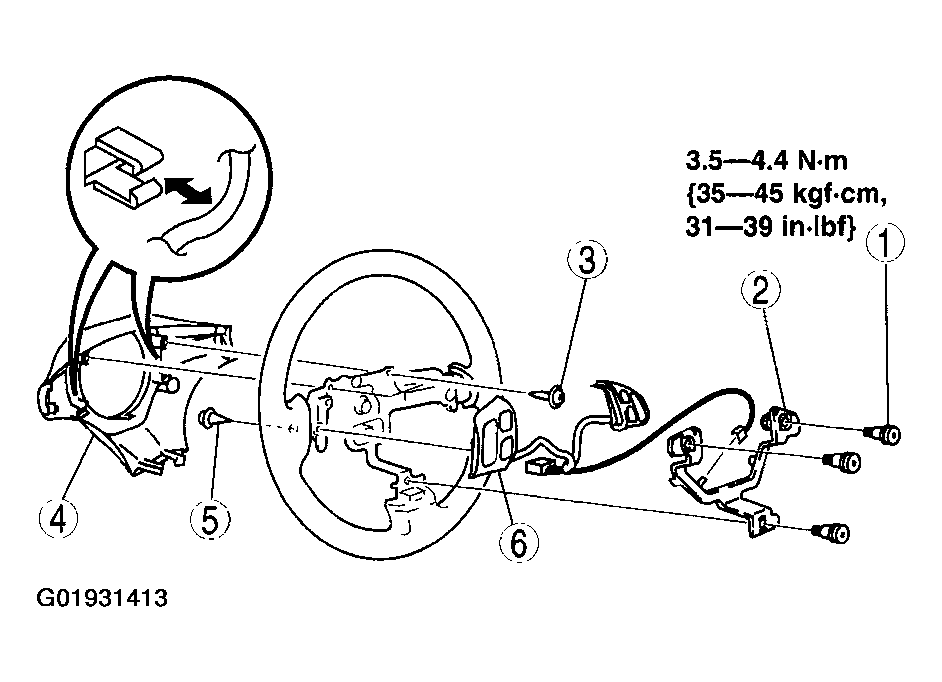

Fig 2: Audio Control Switch Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
