Audio Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio unit. (See CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY .)
Disassemble in the order indicated.

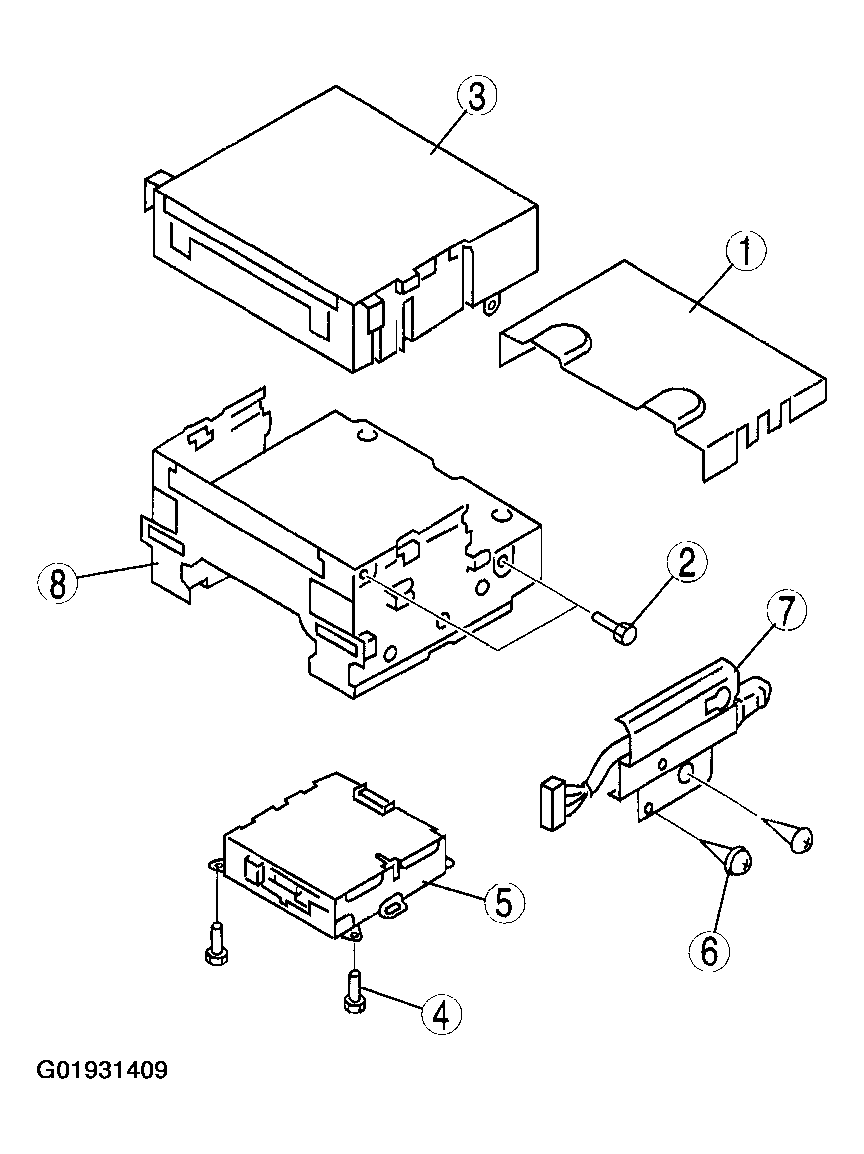

Fig 1: Identifying Audio Unit Components
Courtesy of MAZDA MOTORS CORP.

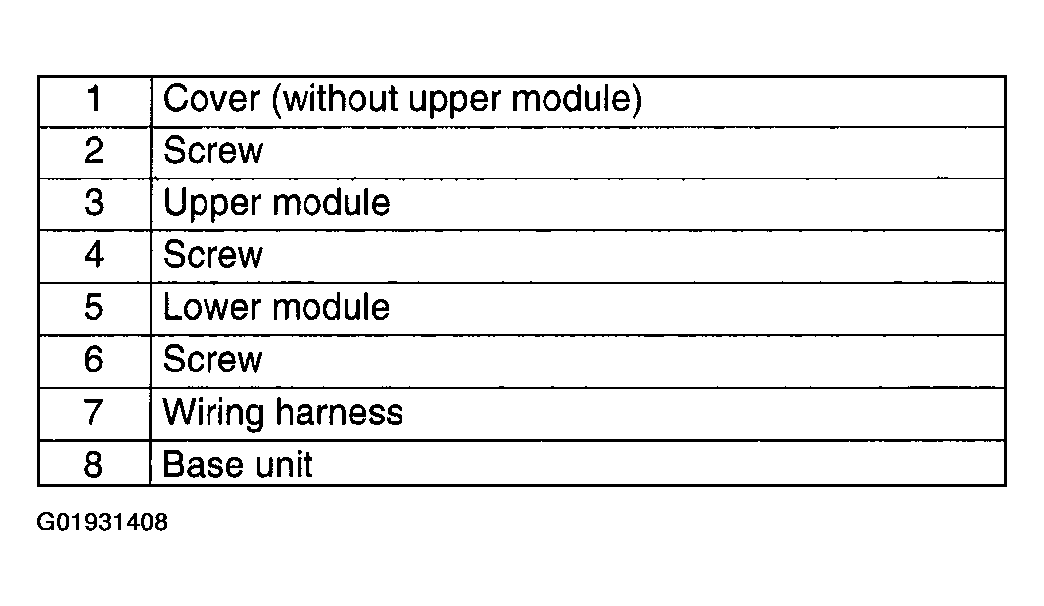

Fig 2: Audio Unit Disassemble Order Table
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
