Automatic Transaxle Device Relationship Chart

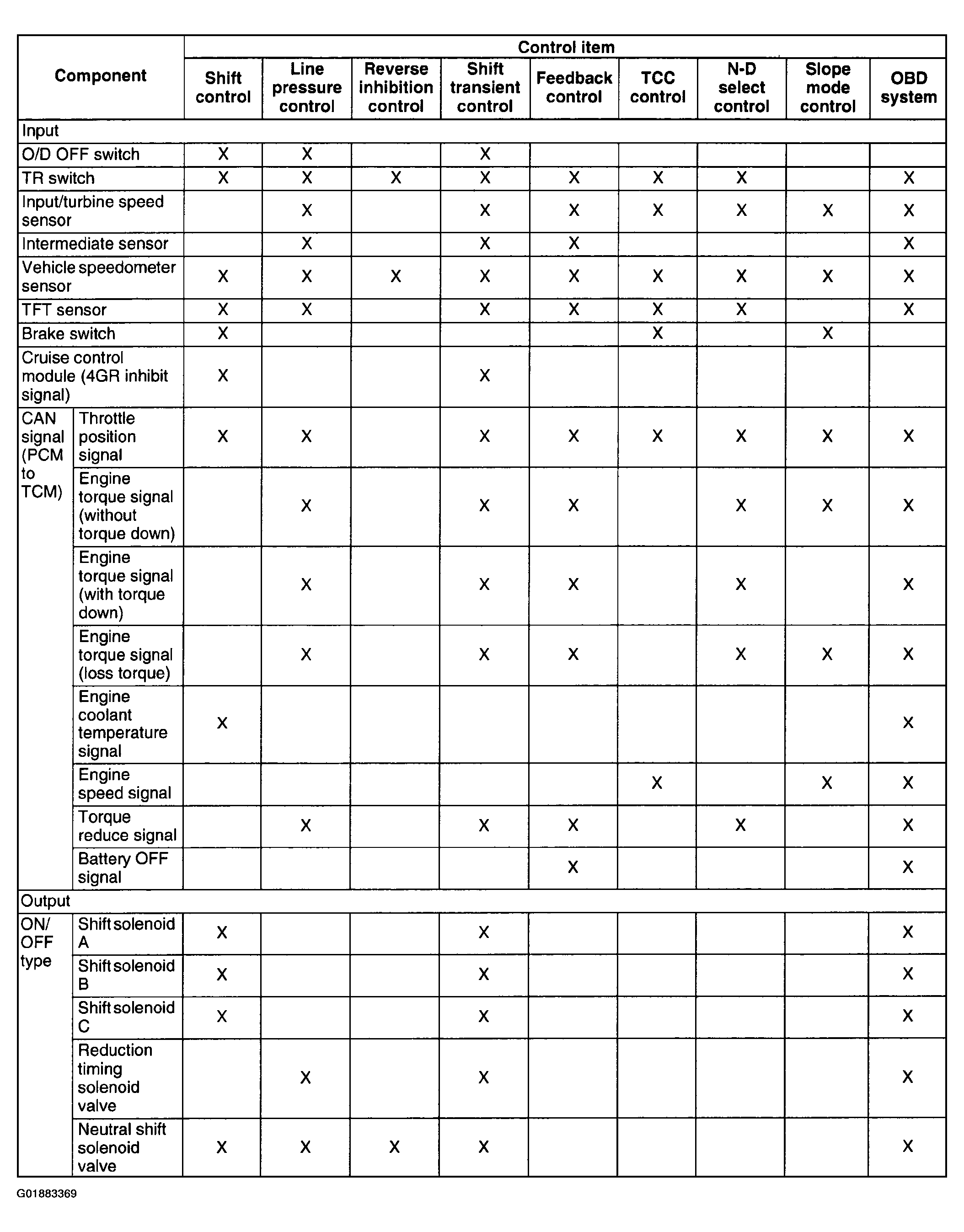

Fig 1: Automatic Transaxle Device Relationship Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

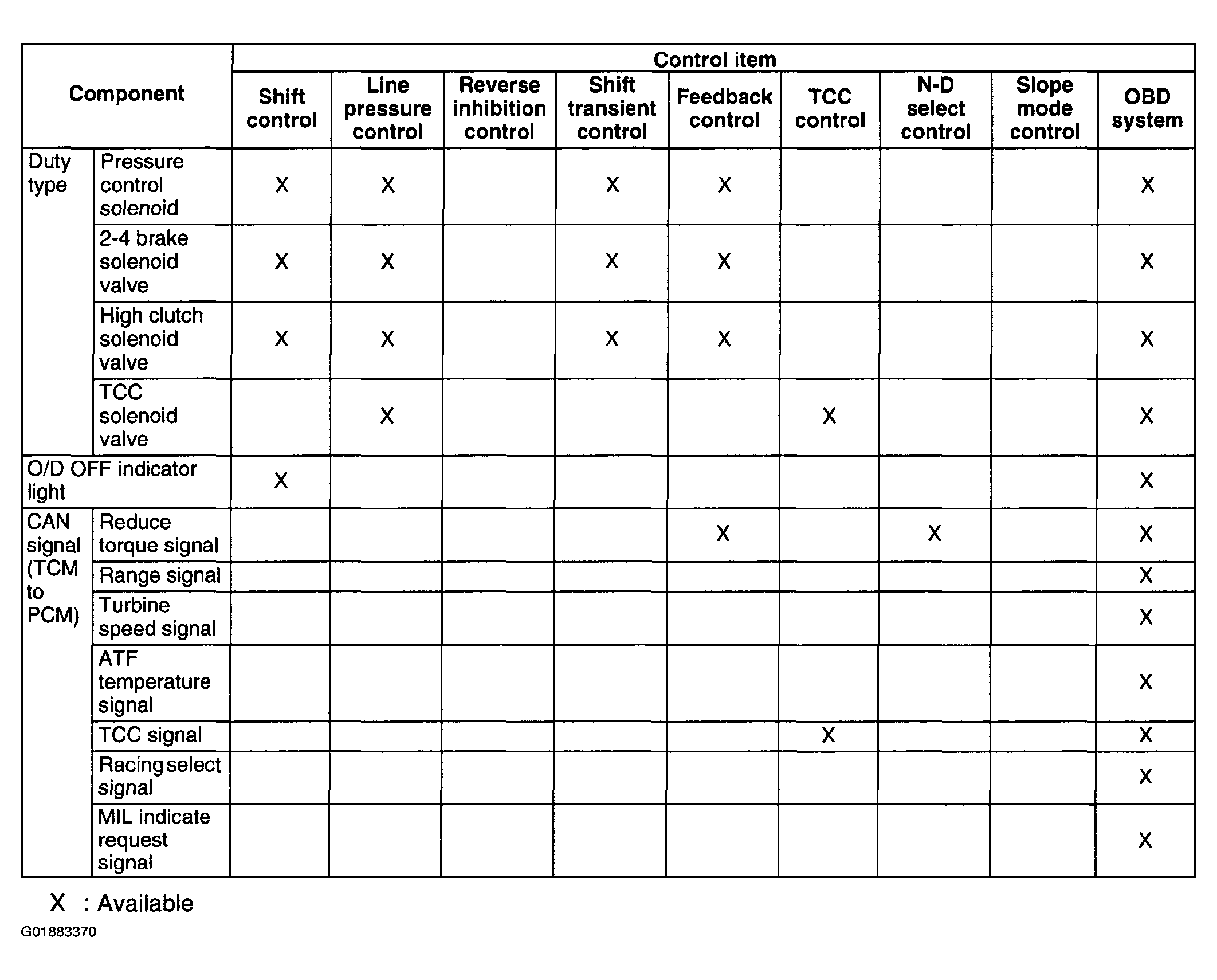

Fig 2: Automatic Transaxle Device Relationship Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
