Automatic Transaxle Cross-Sectional View
Automatic Transaxle Cross-Sectional View

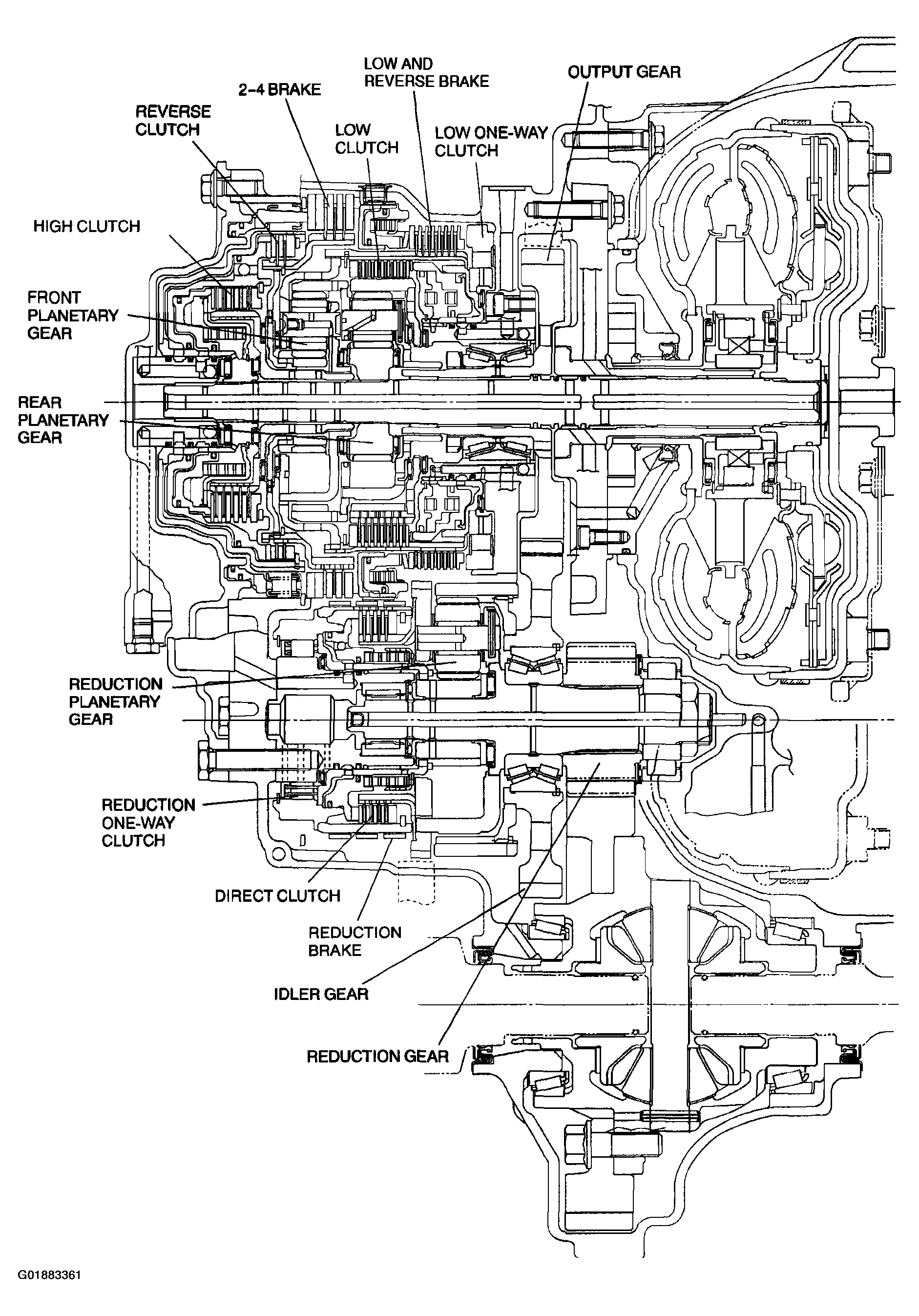

Fig 1: Cross - Sectional View Of Automatic Transaxle
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
