Powertrain System: Powerflow: Structure
The powertrain system consists of seven sets of clutches, brake, brake band, two sets of one-way clutches, and simple type planetary gears.

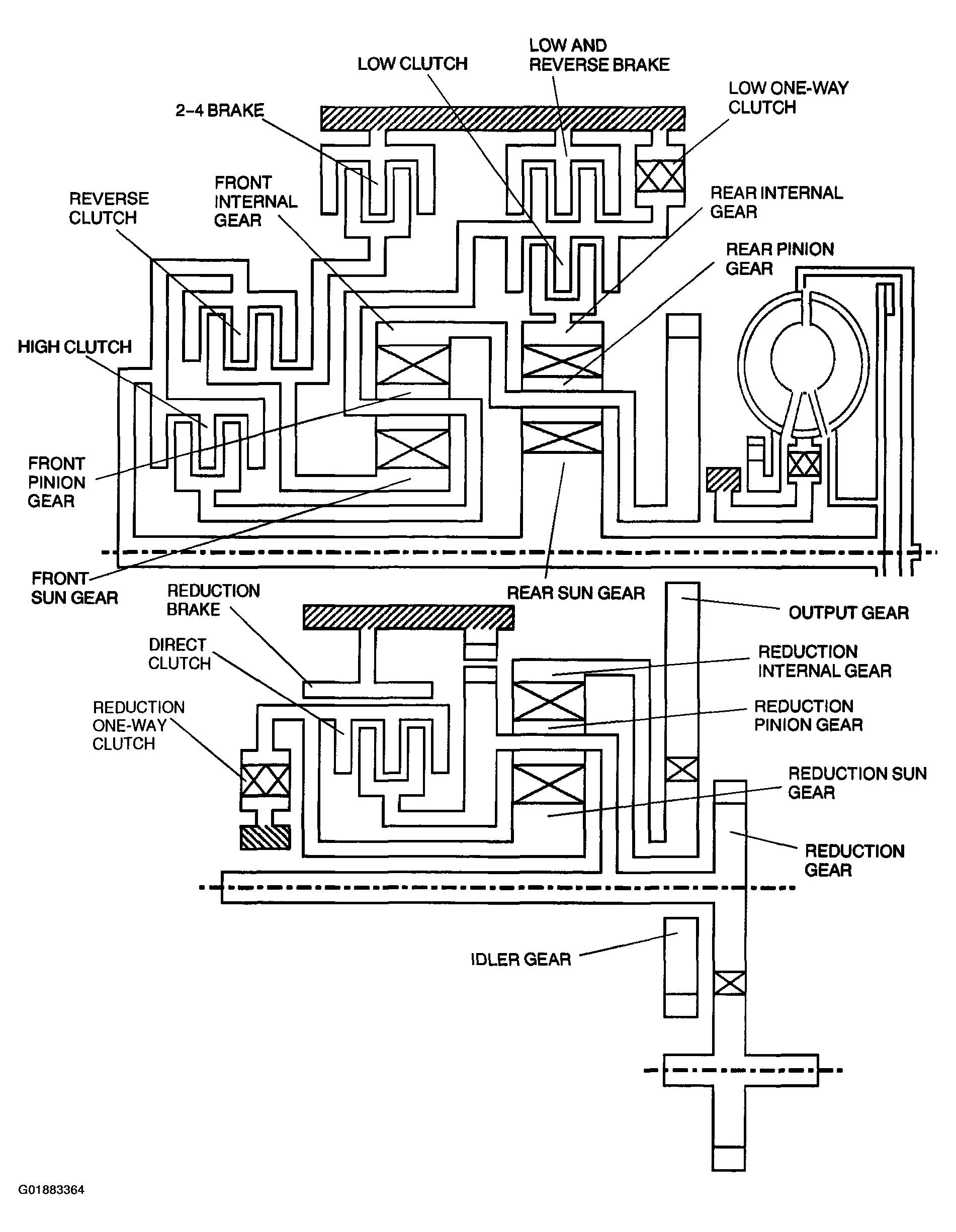

Fig 1: Powertrain System Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

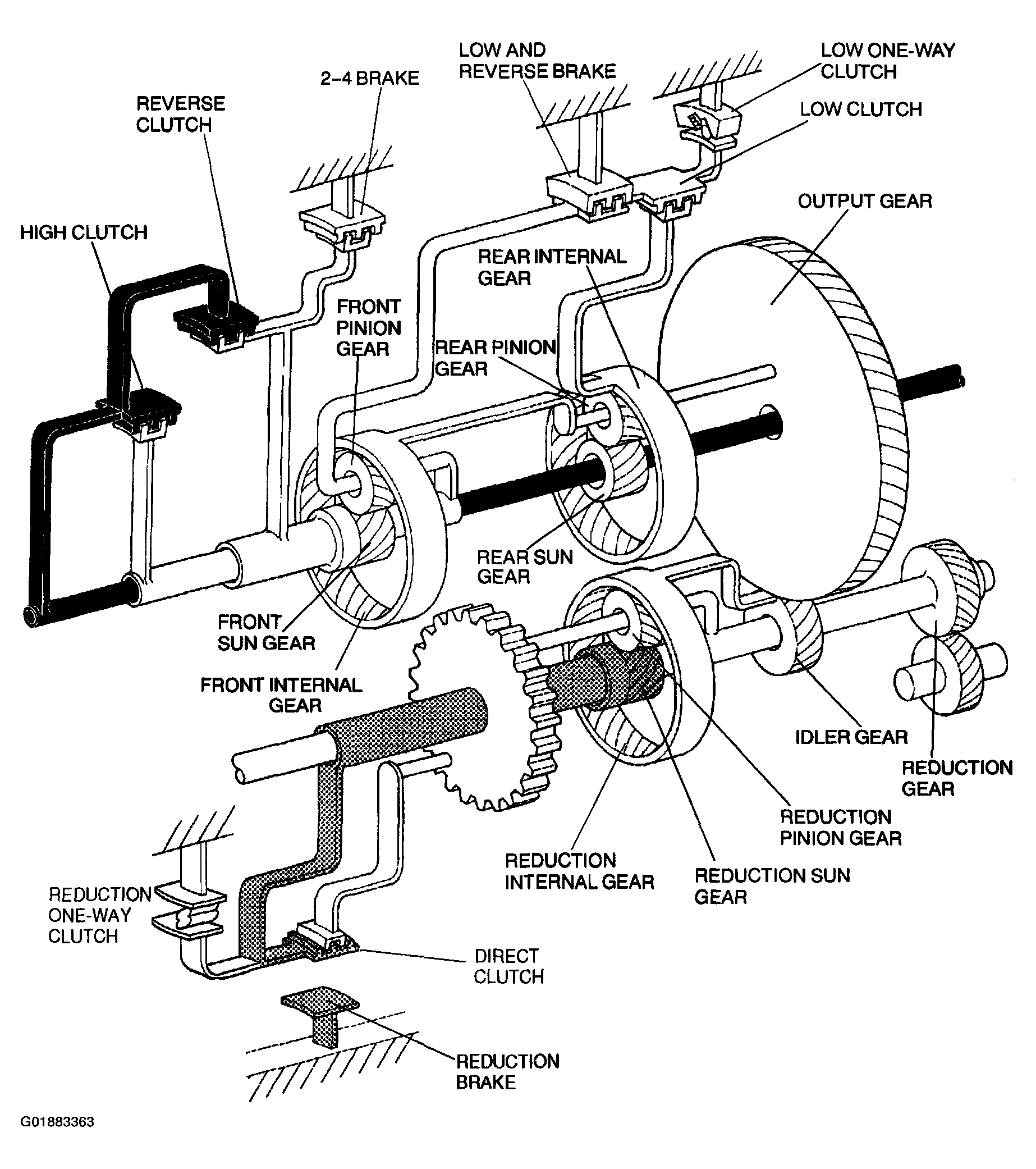

Fig 2: Powertrain System Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
