Key Interlock Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the key interlock resistor connector.
  3. Remove the key interlock resistor.
  4. Install the key interlock resistor.
  5. Connect the key interlock resistor connector.
  6. Connect the negative battery cable.

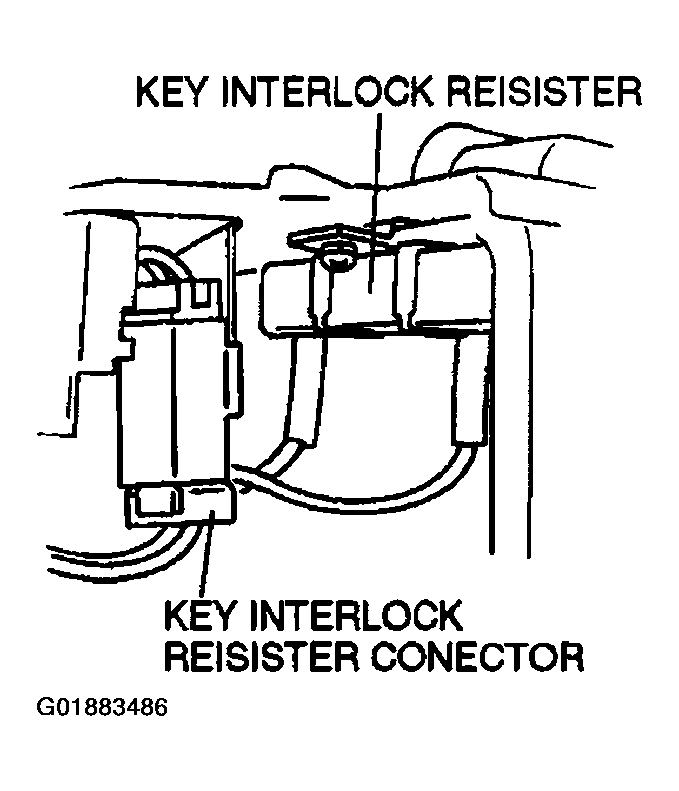

    Fig 1: Locating Key Interlock Resistor/Connector
    G01883486Courtesy of MAZDA MOTORS CORP.
