Continuity Inspection

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Disconnect the key interlock solenoid connector.
  4. Inspect for continuity between terminals A and B.
    • If there is no continuity, replace the key cylinder.

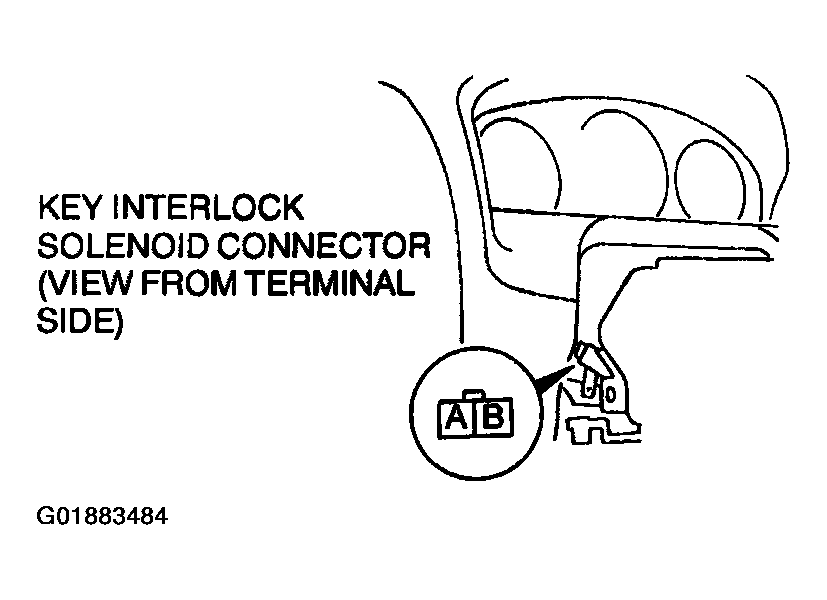

      Fig 1: Identifying Key Interlock Solenoid Connector
      G01883484Courtesy of MAZDA MOTORS CORP.
  5. Connect the key interlock solenoid connector.
  6. Install the column cover.
  7. Connect the negative battery cable.
