Shift-Lock Relay Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the shift-lock relay connector.

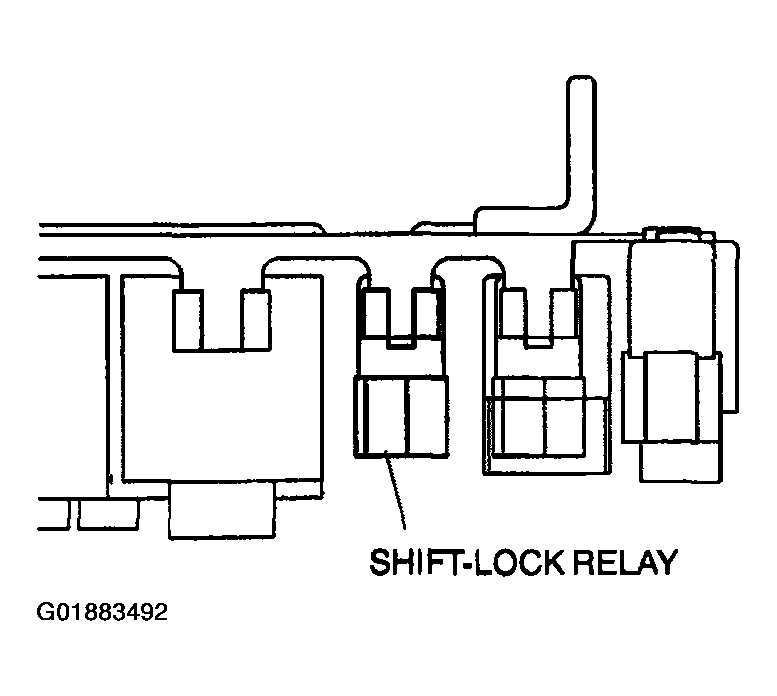

    Fig 1: Locating Shift-Lock Relay
    G01883492Courtesy of MAZDA MOTORS CORP.
  3. Remove the shift-lock relay.
  4. Install the shift-lock relay.
  5. Connect the shift-lock relay connector.
  6. Connect the negative battery cable.
