Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

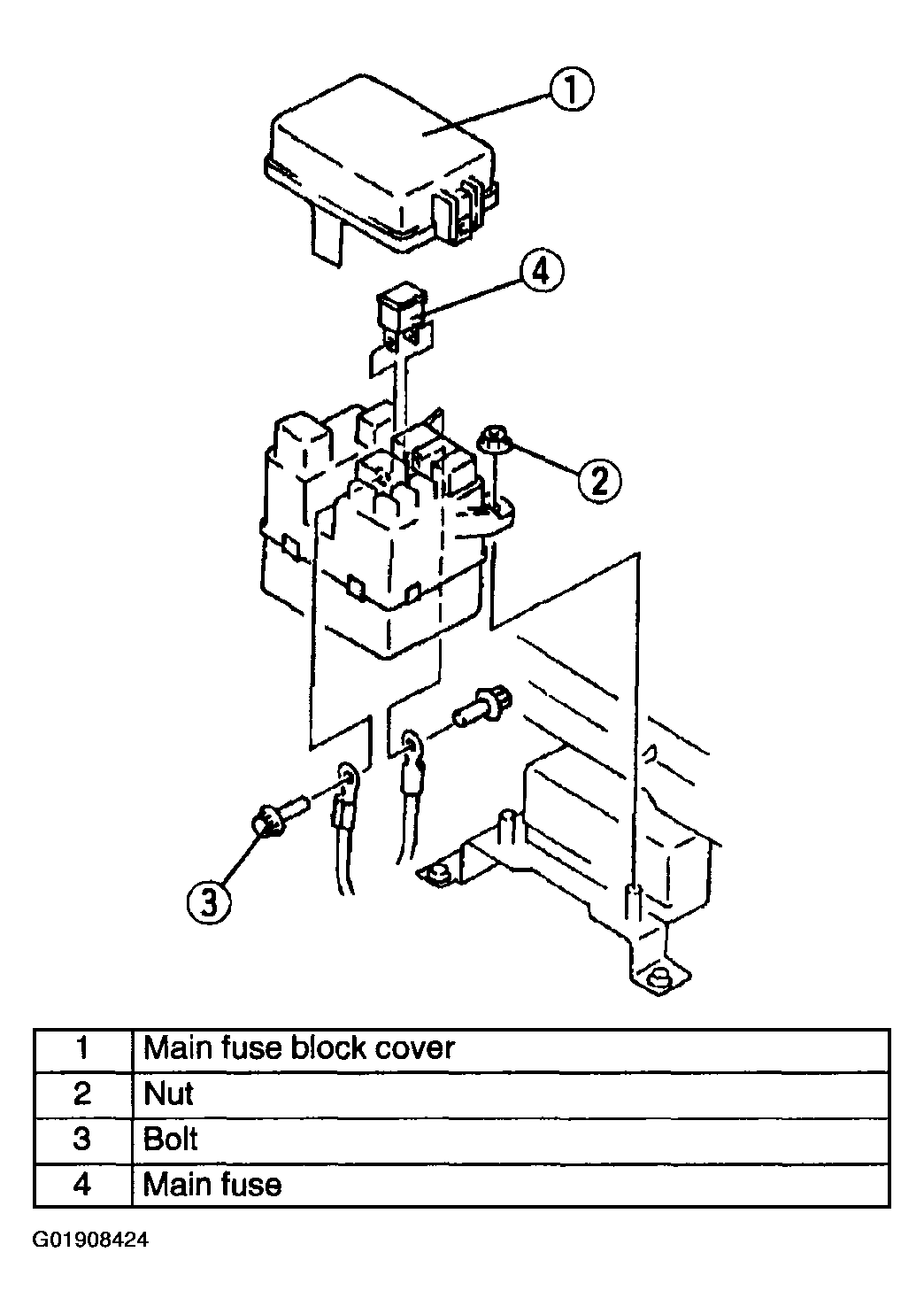

    Fig 1: Removing Main Fuse
    G01908424Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
