Power Window Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the power window switch. (See POWER WINDOW SWITCH REMOVAL/INSTALLATION  .)
  3. Inspect for the continuity between the power window switch terminals using an ohmmeter.
    • If not as specified, replace the power window switch.

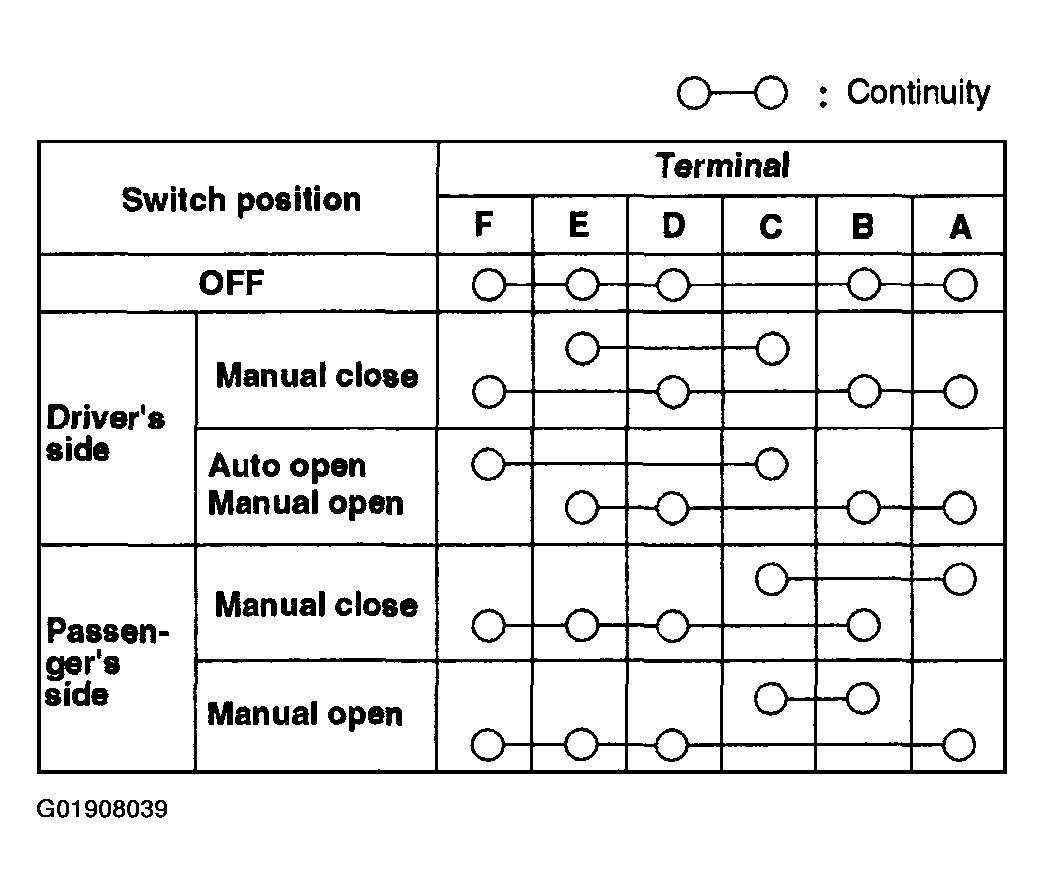

      Fig 1: Power Window Switch Inspection (1 Of 2)
      G01908039Courtesy of MAZDA MOTORS CORP.

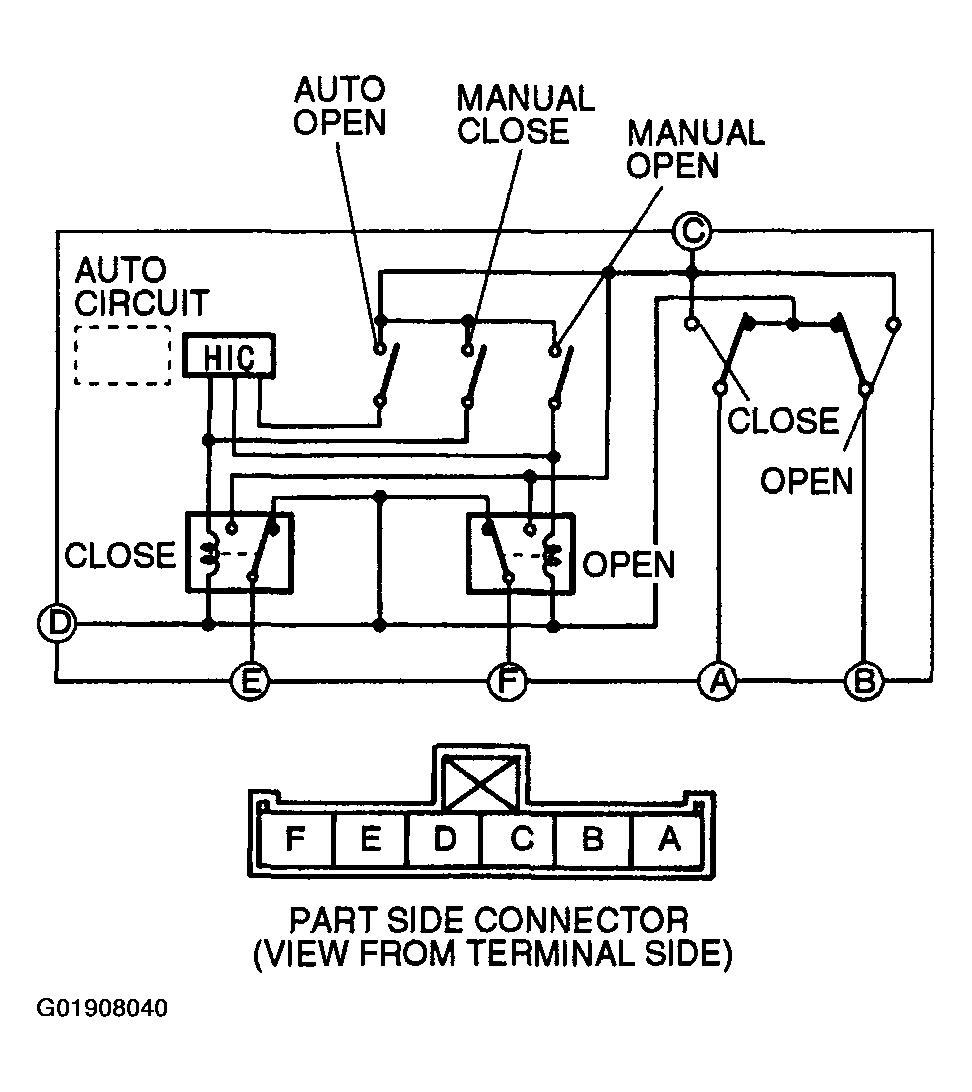

      Fig 2: Power Window Switch Inspection (2 Of 2)
      G01908040Courtesy of MAZDA MOTORS CORP.
