Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G00145304Courtesy of MAZDA MOTORS CORP.

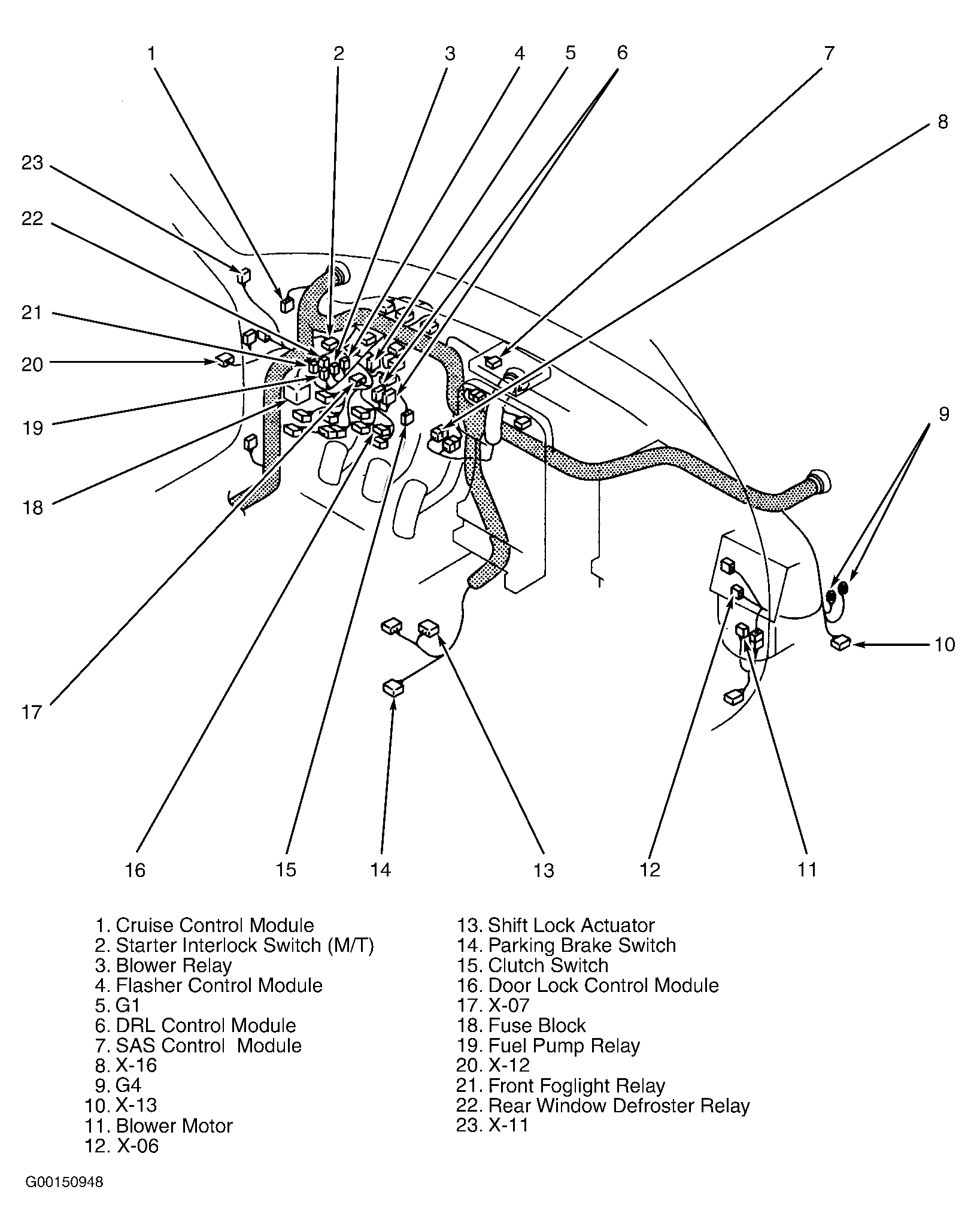

Fig 2: Dash
G00150948Courtesy of MAZDA MOTORS CORP.

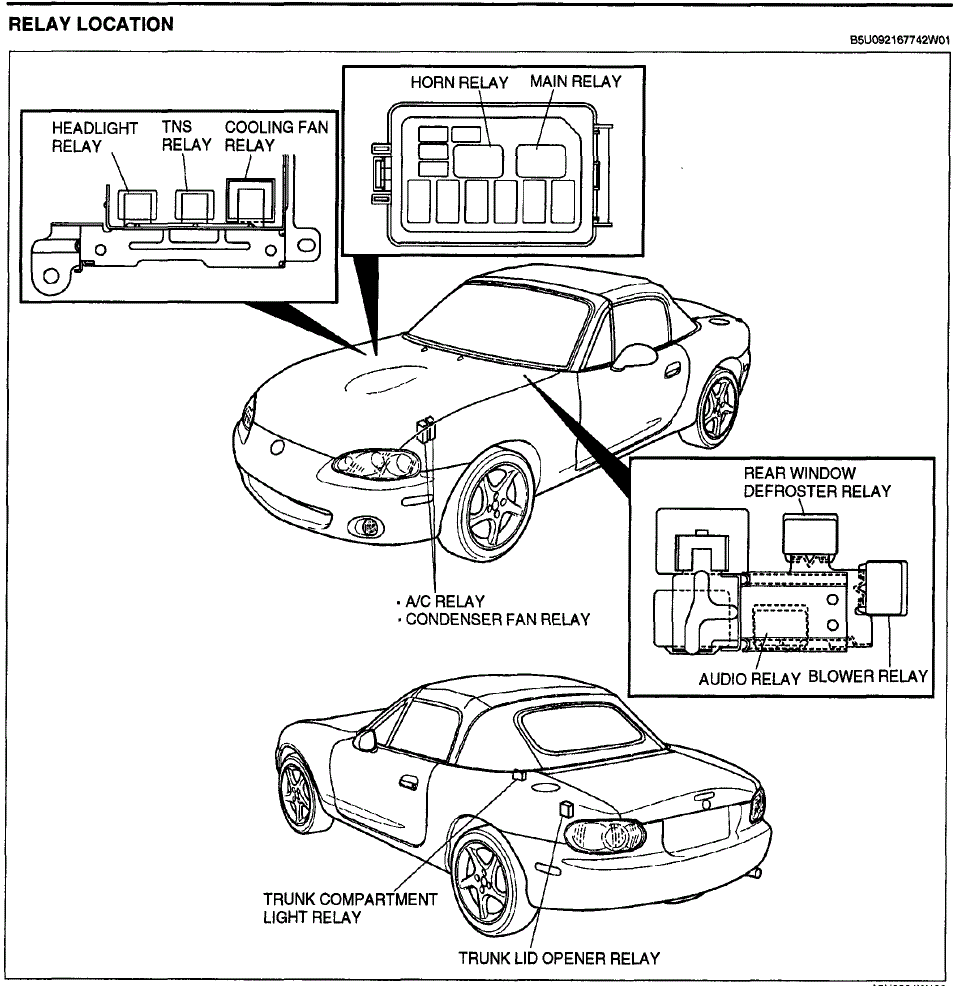

Fig 3: Fuse/Relay Box Relays
G00566344Courtesy of MAZDA MOTORS CORP.
