Exhaust System Removal/Installation: Notes

WARNING:
  • Hot engines and the exhaust system can cause severe burns. Turn off the engine and wait until it and the exhaust system are cool before removing or installing the exhaust system.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure.

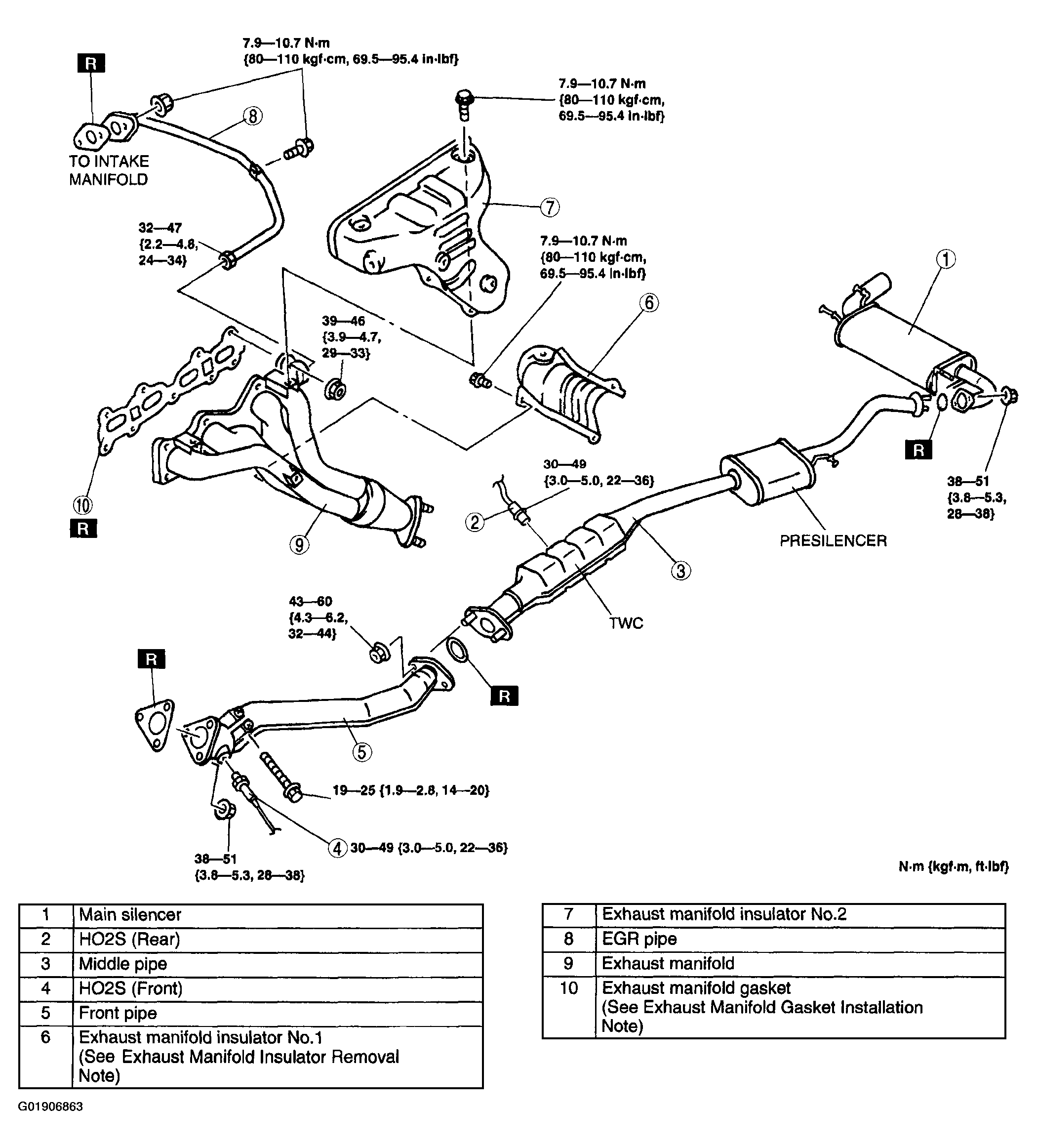

    Fig 1: Removing/Installing Exhaust System
    G01906863Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
