Engine Technical Data

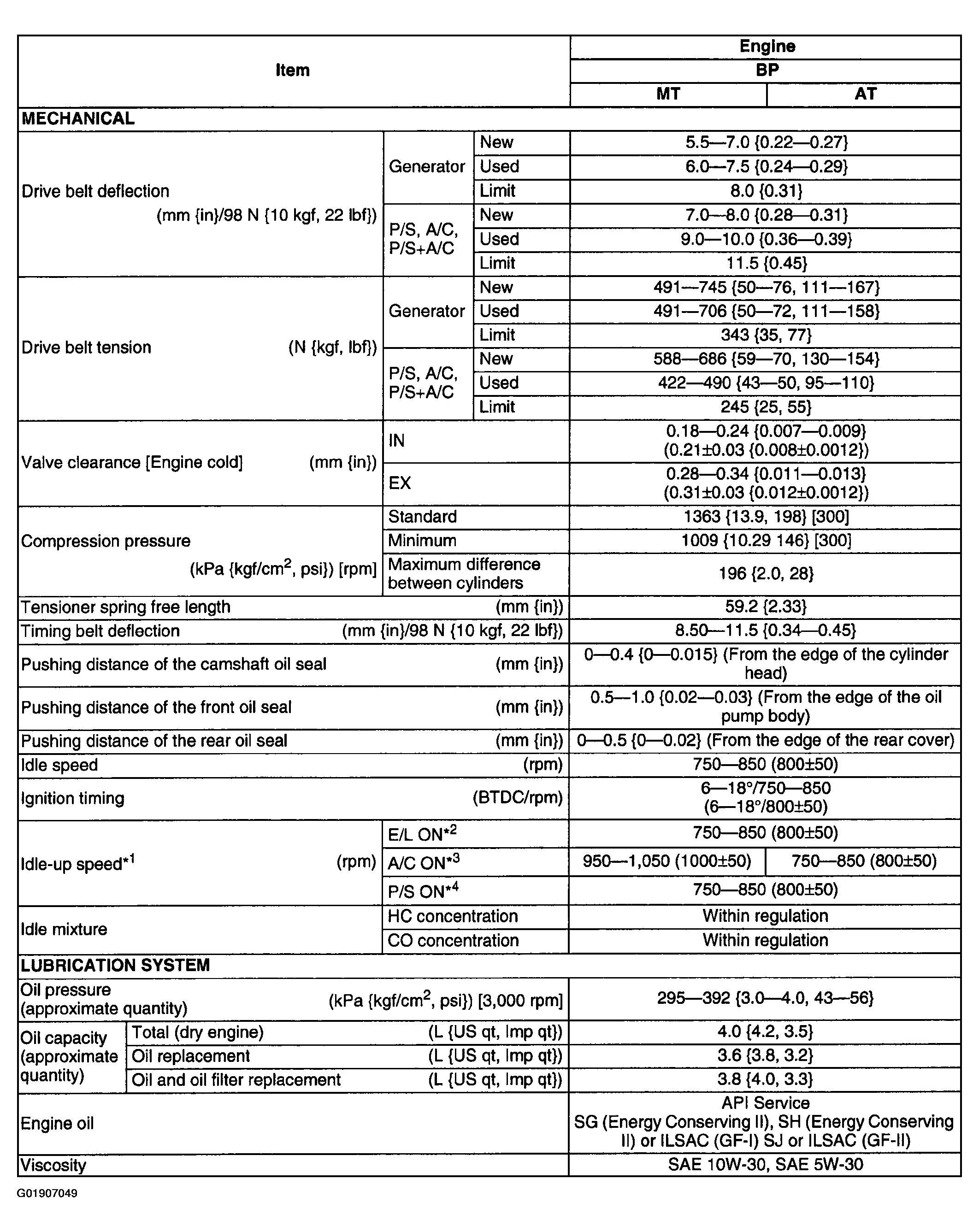

Fig 1: Engine Technical Data (1 Of 3)
G01907049Courtesy of MAZDA MOTORS CORP.

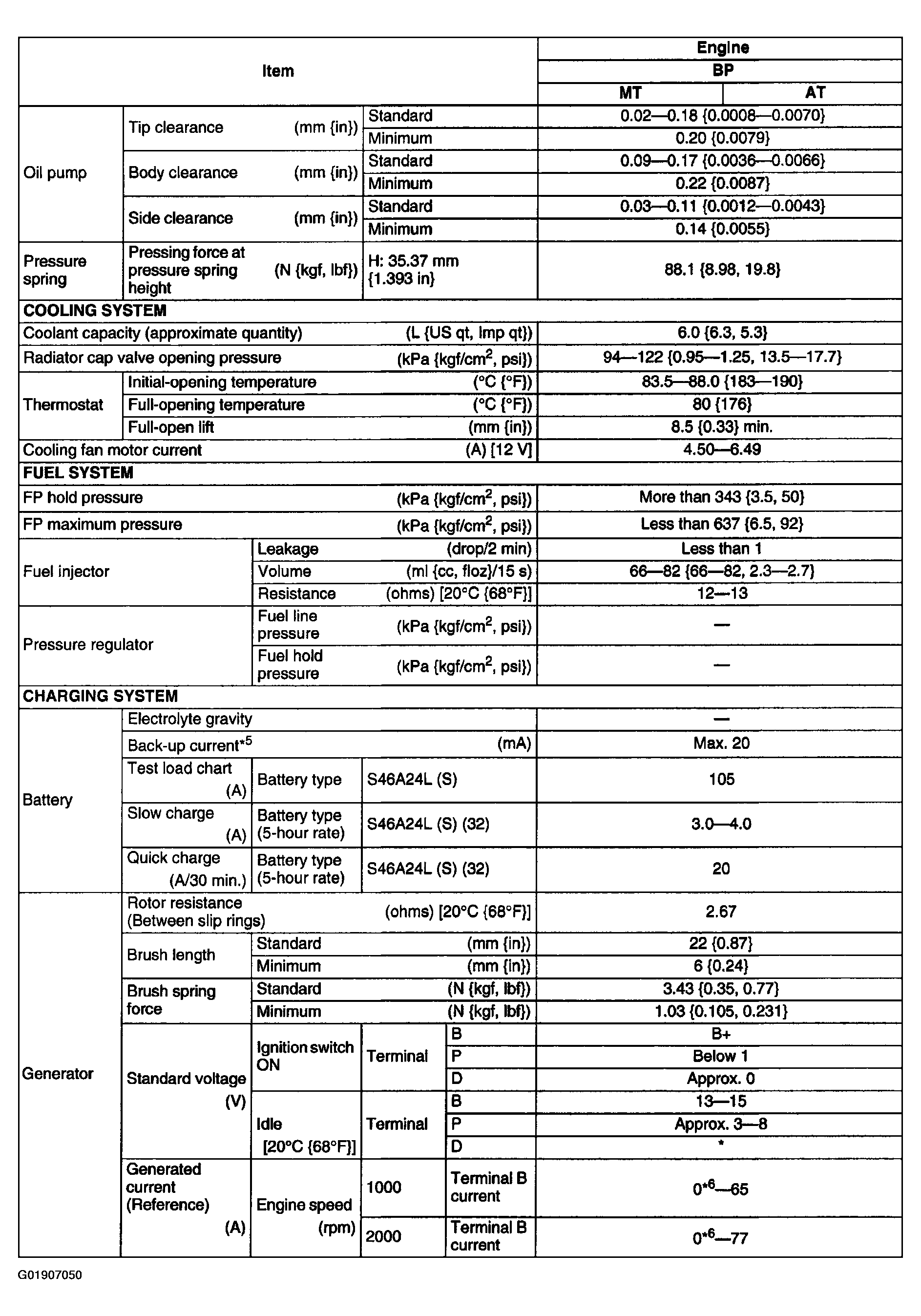

Fig 2: Engine Technical Data (2 Of 3)
G01907050Courtesy of MAZDA MOTORS CORP.

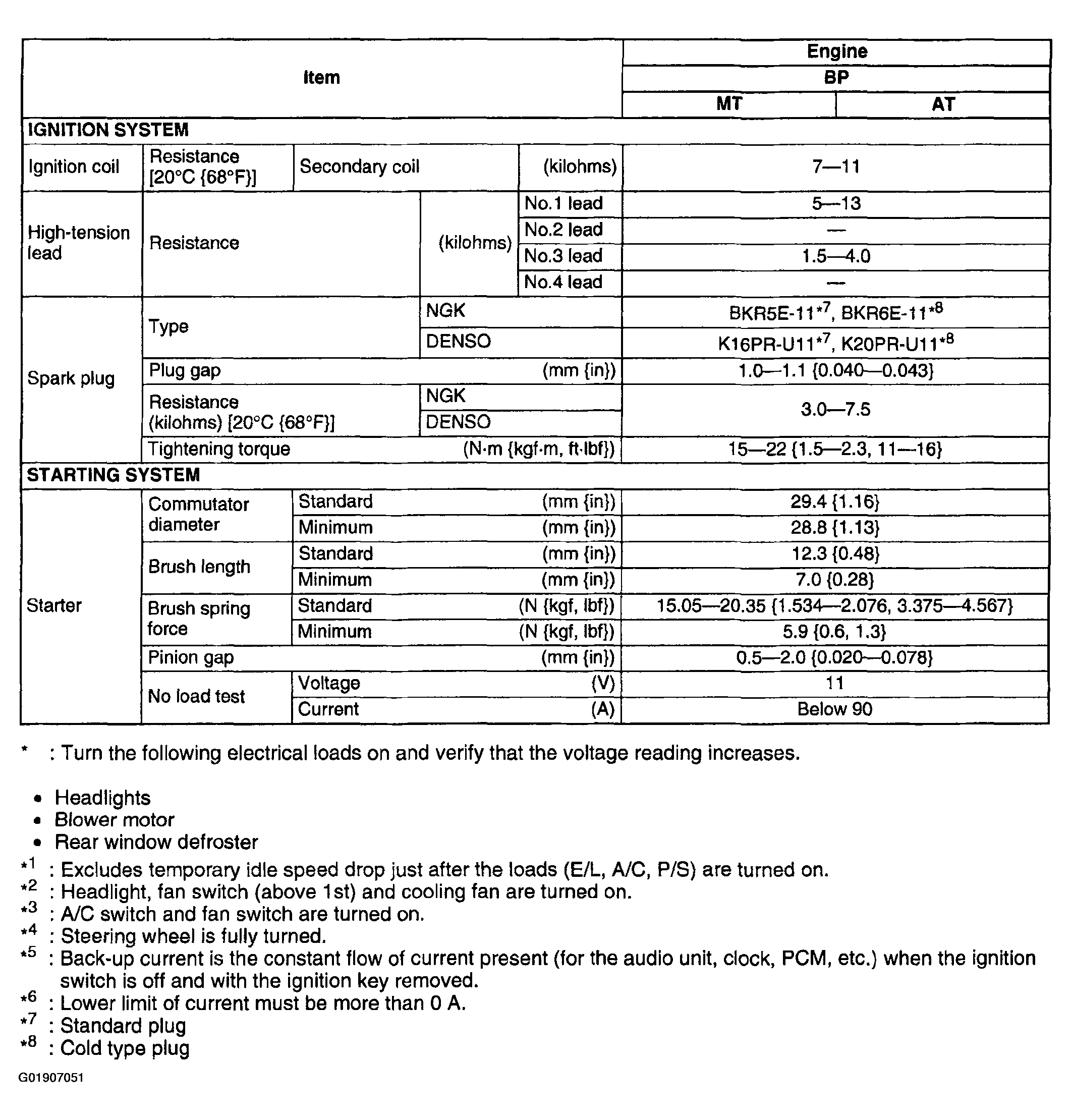

Fig 3: Engine Technical Data (3 Of 3)
G01907051Courtesy of MAZDA MOTORS CORP.
