Powertrain Control Module Location & Connectors Terminals Identification

PCM is located above brake pedal. For PCM location and connector terminals identification. See Fig 1 and Fig 2 .

Fig 1: Locating Powertrain Control Module

Courtesy of MAZDA MOTORS CORP.

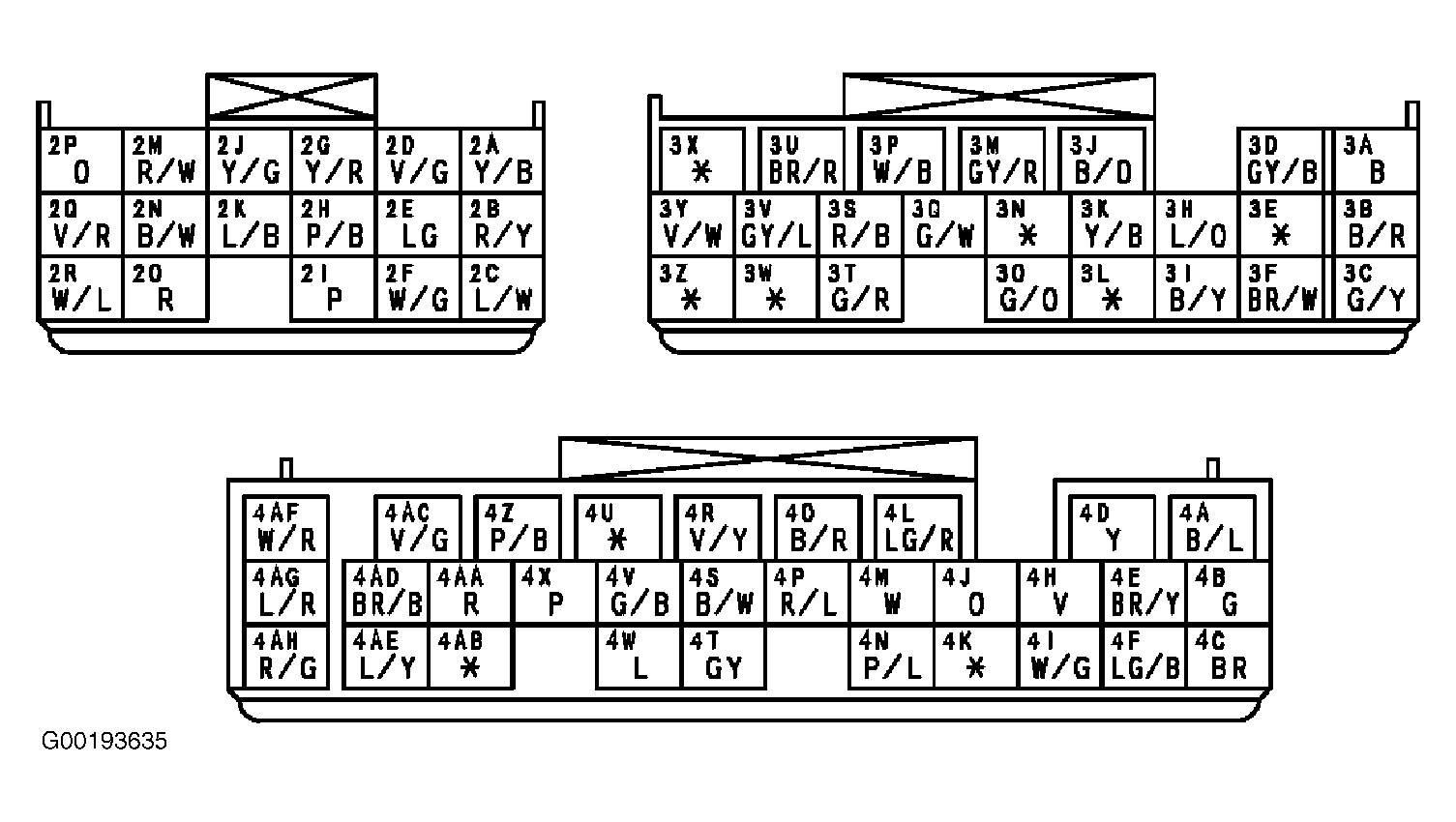

Fig 2: Identifying Power Control Module Connectors & Terminals

Courtesy of MAZDA MOTORS CORP.
