Key Interlock Unit Inspection

  1. Remove the front side trim.
  2. Turn the ignition switch to ON, and inspect terminal voltages, referring to the chart.
    • If not as specified, repair the wiring harness and/or key interlock unit.

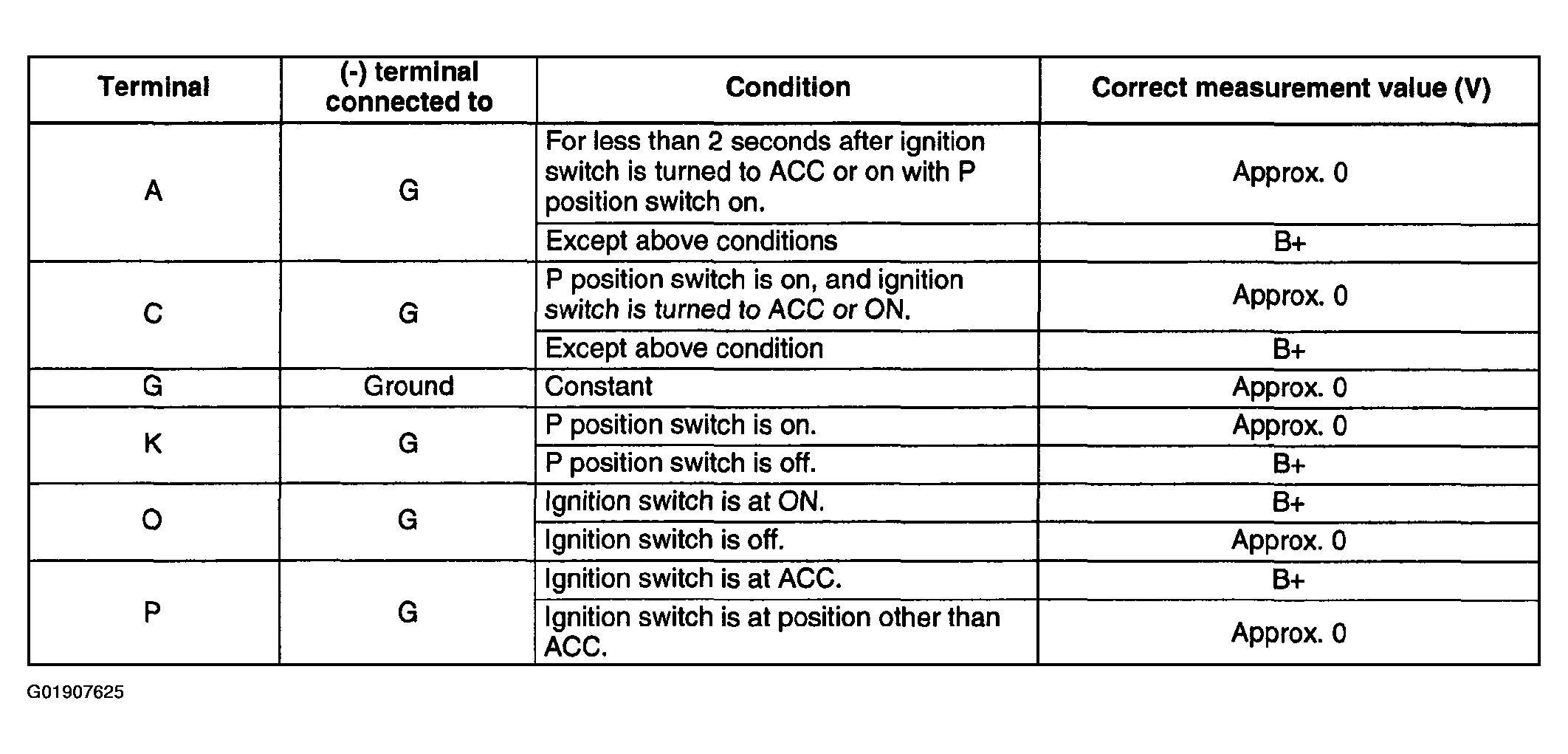

    Fig 1: Key Interlock Unit Terminals Voltage Reference Chart
    G01907625Courtesy of MAZDA MOTORS CORP.

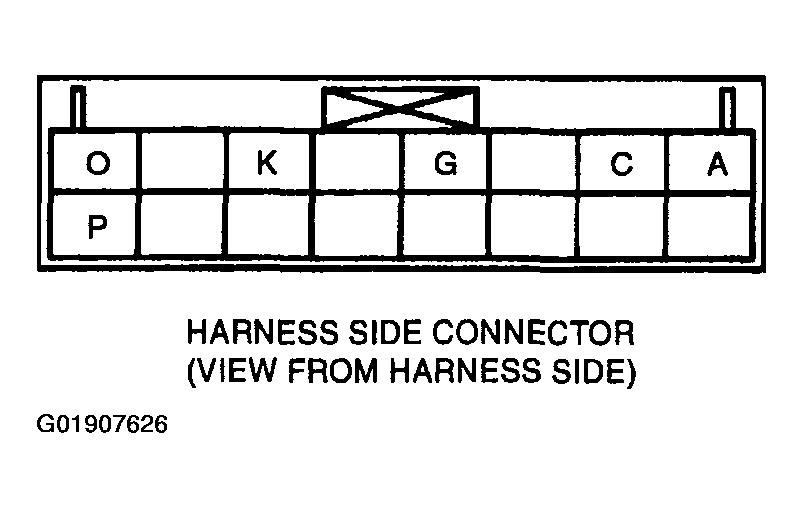

    Fig 2: Identifying Connector Terminals
    G01907626Courtesy of MAZDA MOTORS CORP.
  3. Install the front side trim.
