Cam Assembly Note

  1. Temporarily install the cam to the push rod.
    NOTE:
    • The clearance becomes smaller by turning the cam clockwise.

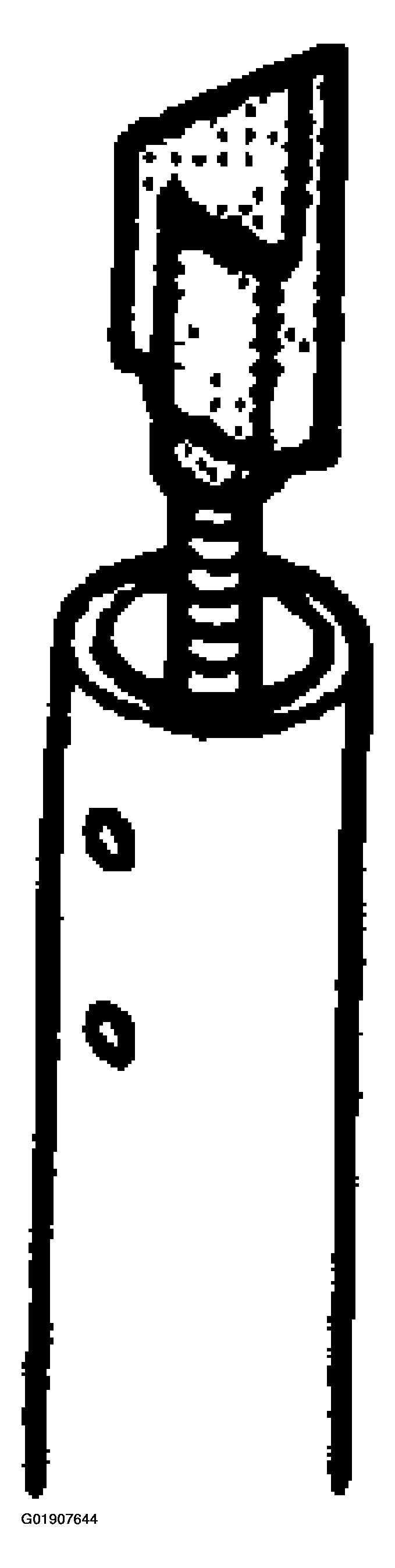

    Fig 1: Installing Cam To Push Rod
    G01907644Courtesy of MAZDA MOTORS CORP.
  2. Adjust the clearance between the guide plate and the guide pin by turning the cam.
  3. Install the selector lever knob and verify that the clearance is as specified.
    • Repeat from step 2 if necessary.

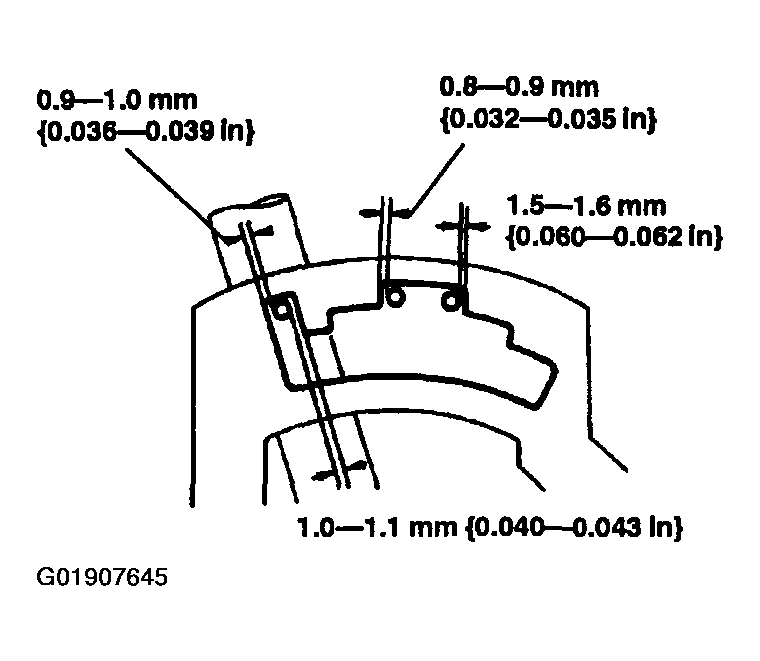

    Fig 2: Measuring Clearance Between Guide Plate And Guide Pin
    G01907645Courtesy of MAZDA MOTORS CORP.
