Indicator Panel Assembly Note

  1. Set the selector sleeve over the selector lever.
  2. Grasp the O/D OFF switch wiring harness and pull it while pushing the selector lever knob down fully on the selector lever.
  3. Connect the O/D OFF switch connector.
  4. Shift the selector lever to the P position.
  5. Align the alignment hole in the slider with the hole in the indicator panel. Install suitable heavy-gauge wire to hold the slider.

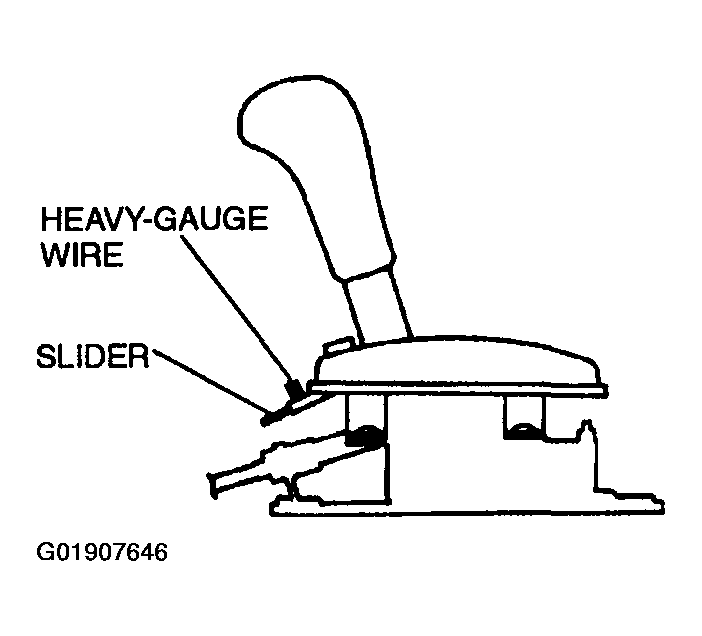

    Fig 1: Installing Heavy-Gauge Wire Into Slider Hole
    G01907646Courtesy of MAZDA MOTORS CORP.
  6. Tighten the indicator mounting screws in the order shown in the figure.

    Tightening torque

    1. 1.5-2.4 N.m {16-24 kgf.cm, 14-21 in.lbf}

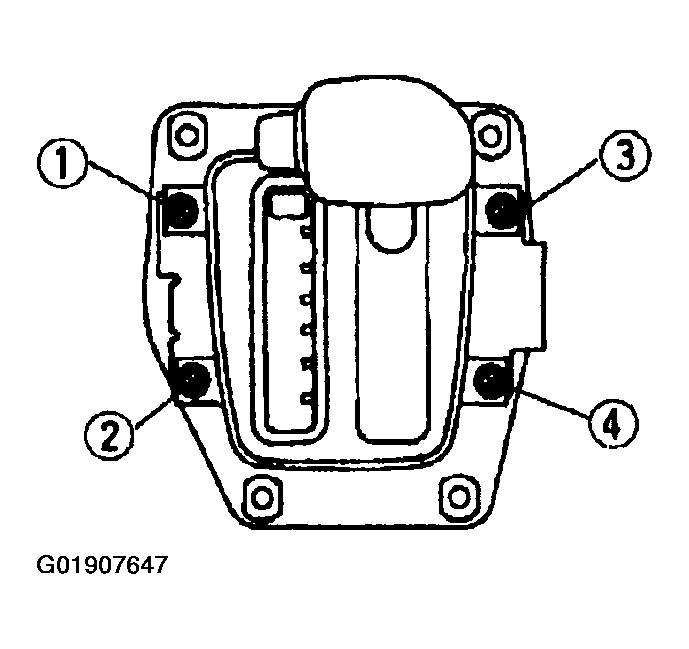

    Fig 2: Indicator Mounting Screw Tightening Sequence
    G01907647Courtesy of MAZDA MOTORS CORP.
  7. Remove the wire from the slider.
  8. Verify that the selector lever properly aligns with the indicator in each range.
  9. Verify correct operation of the emergency override button.
