Selector Lever Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

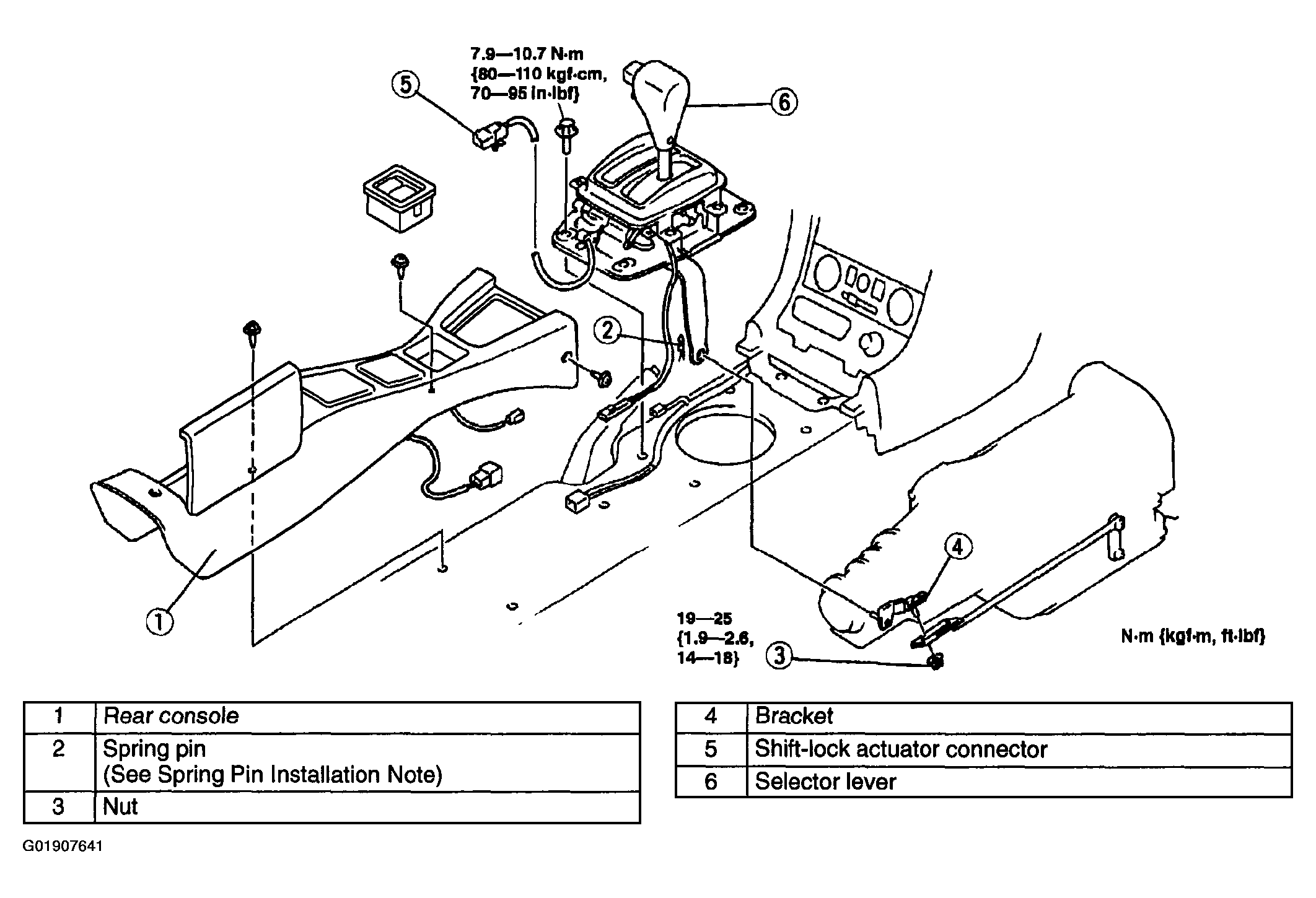

    Fig 1: Removal Order Of Selector Lever
    G01907641Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
