Trunk Lid Lock Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

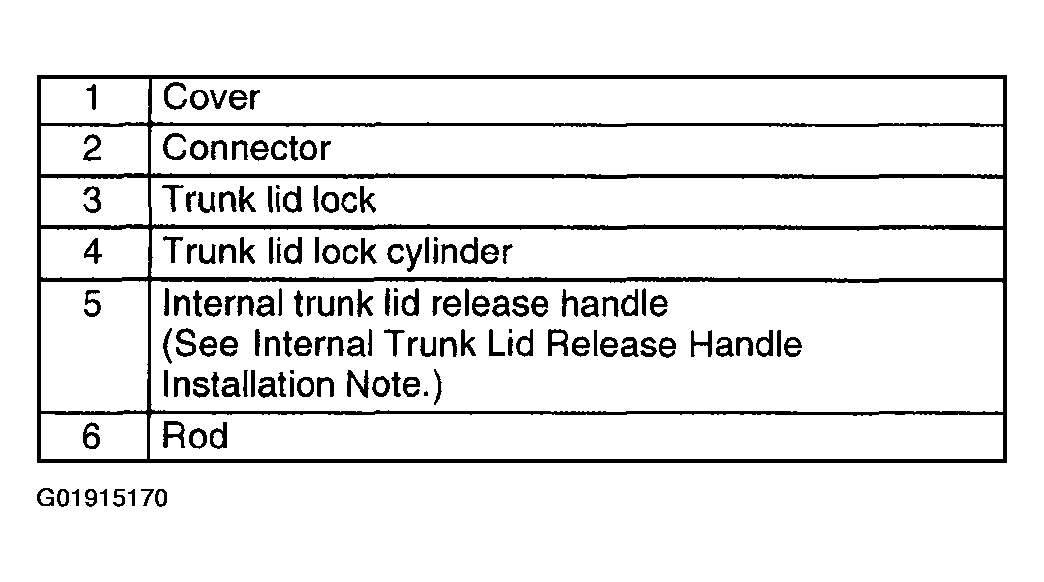

    Fig 1: Removing Order Table
    G01915170Courtesy of MAZDA MOTORS CORP.

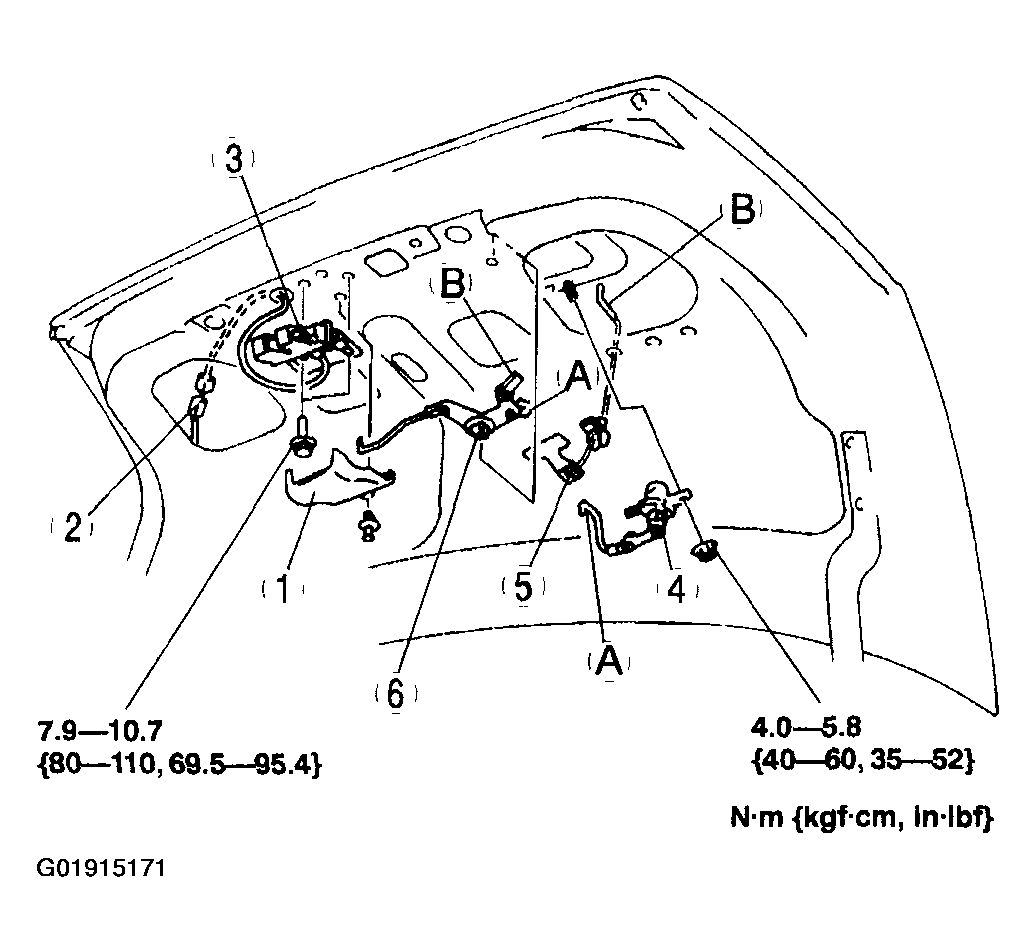

    Fig 2: Removing Trunk Lid Lock Components
    G01915171Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
