Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Remove in the order indicated in the table.

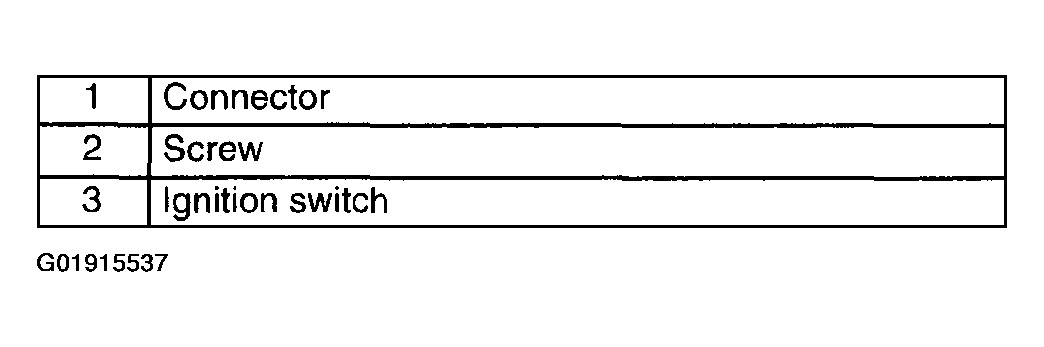

    Fig 1: Ignition Switch Removing Sequence Index
    G01915537Courtesy of MAZDA MOTORS CORP.
    Fig 2: Removing Sequence Of Ignition Switch
    G01915538Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
