Power Systems
>>
Location Index
Location Index

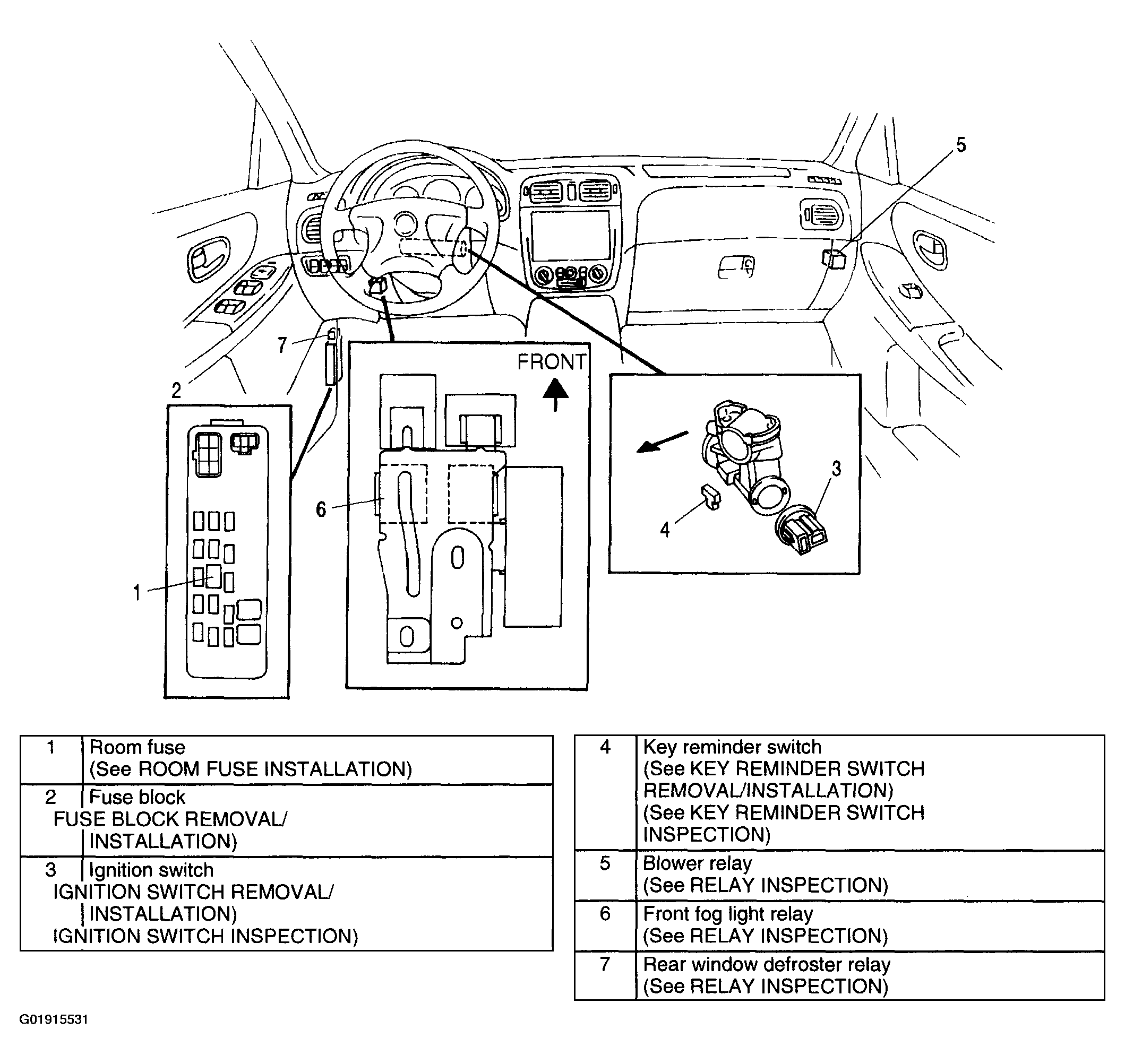

Fig 1: Power Systems Components Location Index (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

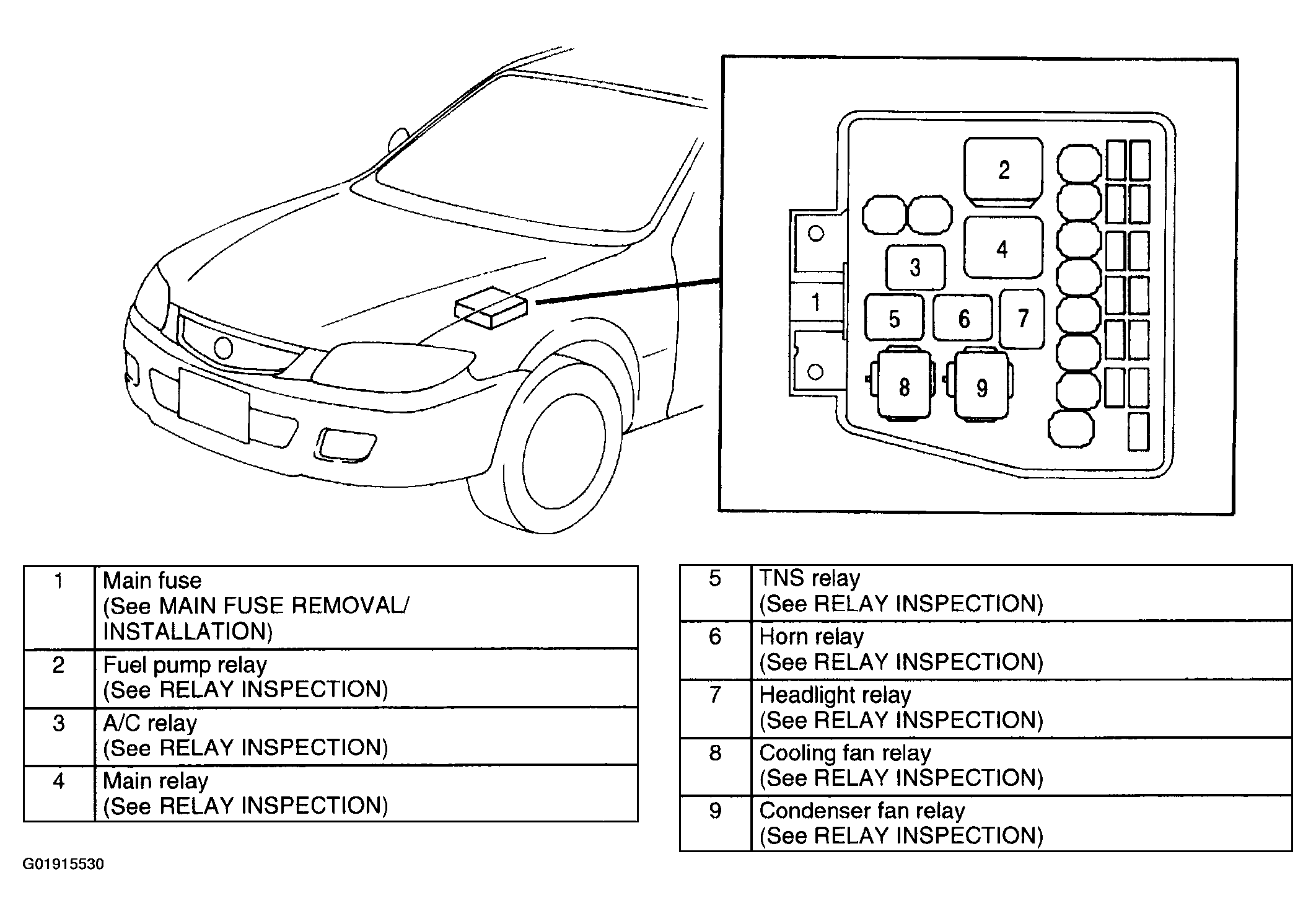

Fig 2: Power Systems Components Location Index (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
