Home >> Mazda >> 2003 >> Protege5 Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Base Removal

Base Removal

  1. Remove the rearview mirror.
  2. Wind each end of a wire around a bar.
  3. Saw through the sealant to remove the base.

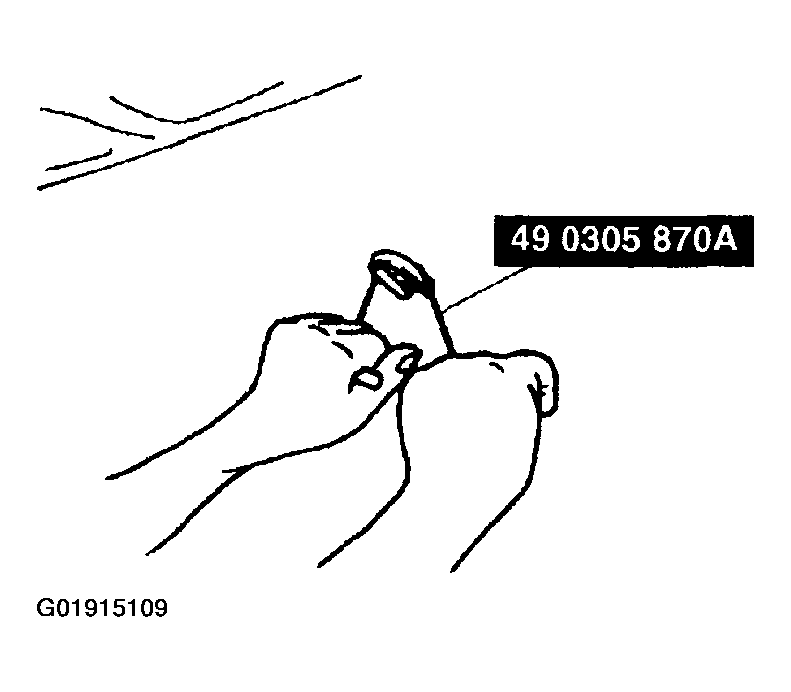

    Fig 1: Removing Base
    G01915109Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of the SST  (piano wire) to prevent it from breaking.
